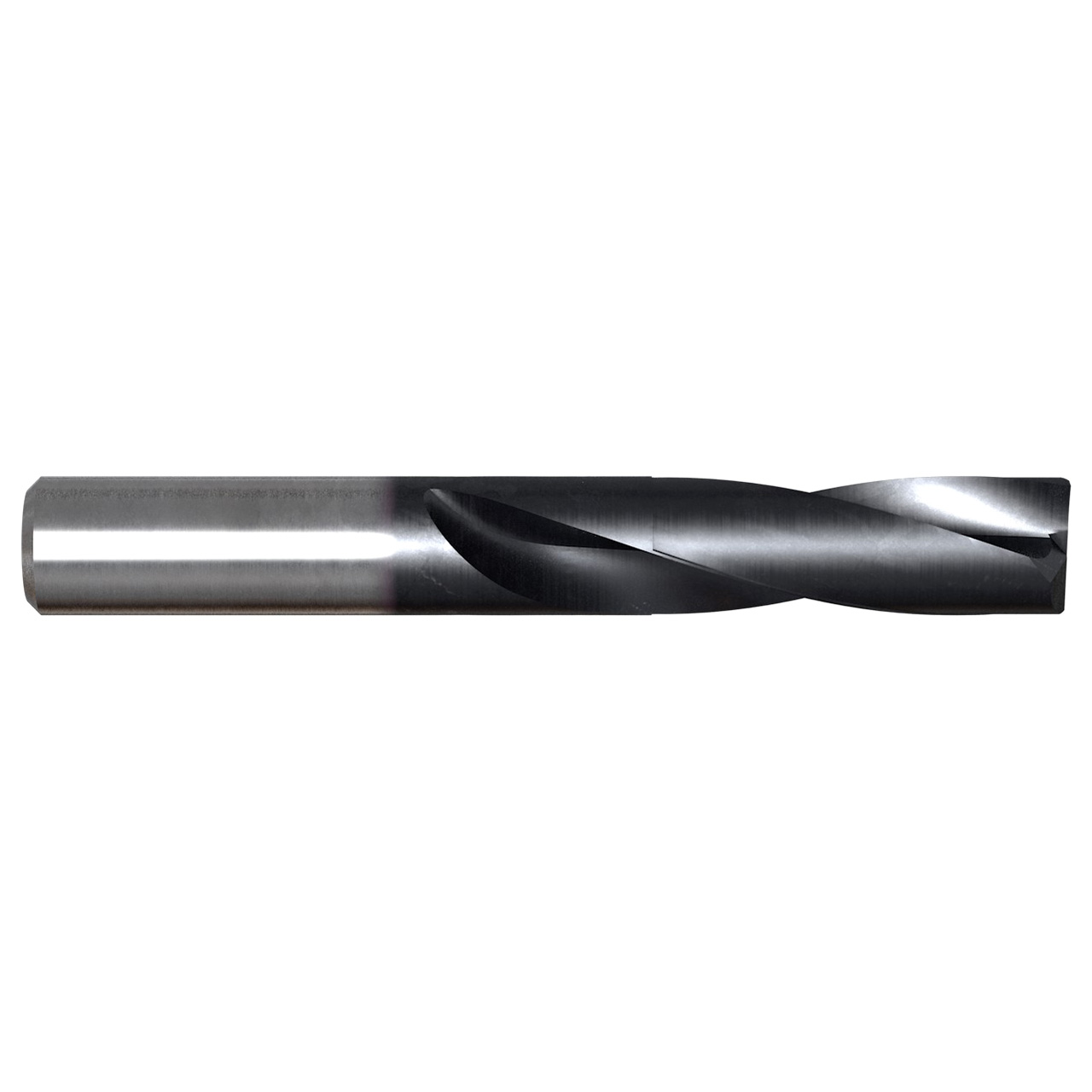

Product Specifications
| Manufacturer Part Number | DPP447128 |
| Diameter (Inch) | 1/2" |
| Diameter (Decimal Inch) | 0.5039" |
| Diameter (mm) | 12.80mm |
| Shank Diameter (Inch) | 43/78" |
| Shank Diameter (Decimal Inch) | 0.5512" |
| Shank Diameter (mm) | 14.00mm |
| Flute Length (Inch) | 2-17/83" |
| Flute Length (Decimal Inch) | 2.2047" |
| Flute Length (mm) | 56.00mm |
| Overall Length (Inch) | 3-15/16" |
| Overall Length (Decimal Inch) | 3.9370" |
| Overall Length (mm) | 100.00mm |
| Number of Flutes | 2 |
| Point Angle | 180 Degree |
| Helix Angle | 20 Degree |
| Length/Diameter | 2 |
| Series | DPP447 |
| Shank Tolerance | h6 |
| Coolant Through | No |
| Coating | X-Coated |
| Material | Carbide |
| Hole Tolerance | h7 |
| Application | P,K |
| Cutting Direction | Right |
