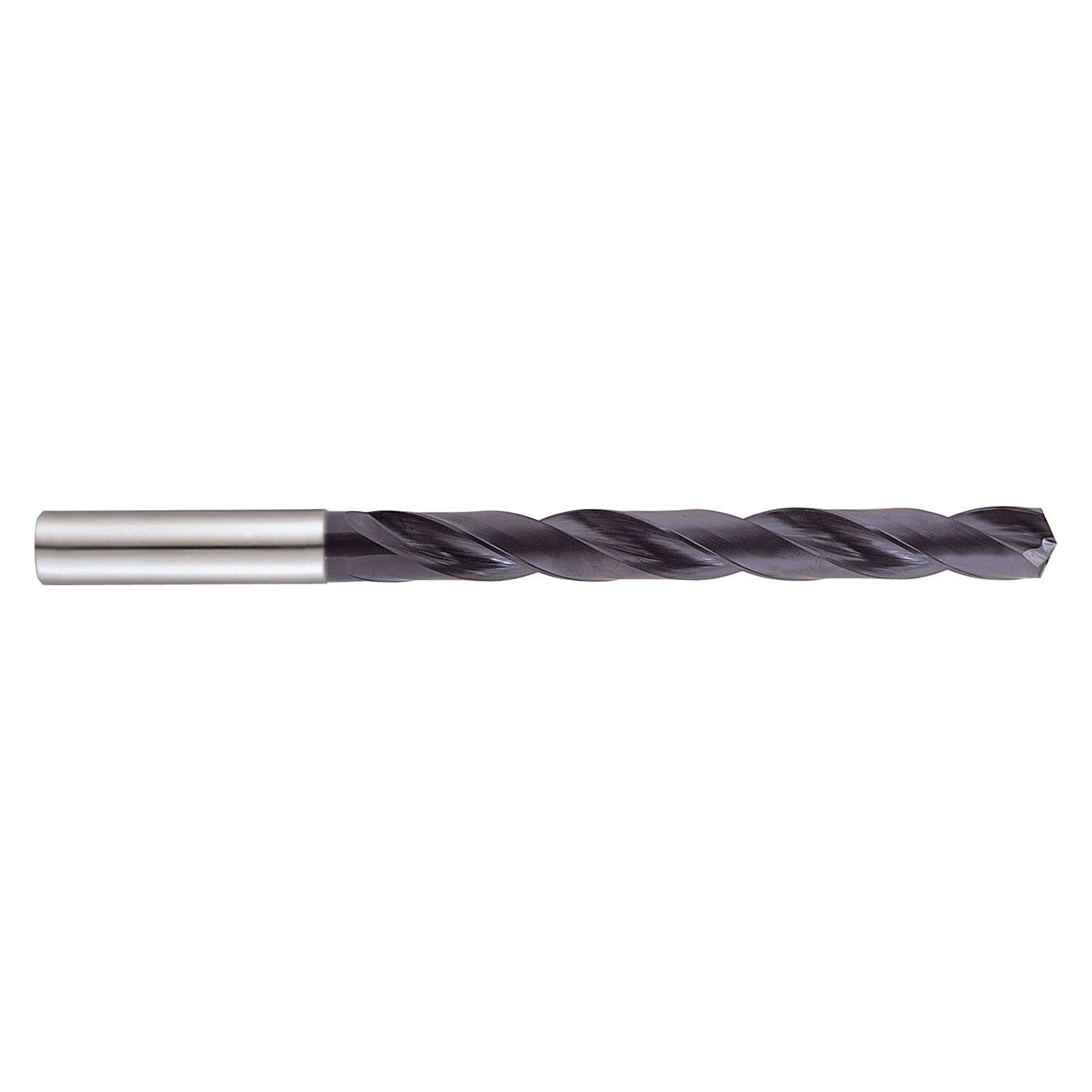

| Manufacturer Part Number | DTX421047 |
| Cutting Diameter (Inch) | 5/27" |
| Cutting Diameter (Decimal Inch) | 0.185" |
| Cutting Diameter (mm) | 4.70mm |
| Shank Diameter (Inch) | 13/55" |
| Shank Diameter (Decimal Inch) | 0.236" |
| Shank Diameter (mm) | 6.00mm |
| Flute Length (Inch) | 1-9/13" |
| Flute Length (Decimal Inch) | 1.692" |
| Flute Length (mm) | 43.00mm |
| Overall Length (Inch) | 3-7/37" |
| Overall Length (Decimal Inch) | 3.189" |
| Overall Length (mm) | 81.00mm |
| Point Length (Decimal Inch) | 0.033" |
| Point Length (mm) | 0.86mm |
| Number of Flutes | 2 |
| Point Angle (Degree) | 140 Degree |
| Helix Angle (Degree) | 30 Degree |
| Shank Tolerance | h6 |
| Coolant Pressure | 20 Bar |
| Cutting Direction | Right Hand |
| Coating | RCH Coated |
| Material | Carbide |
| Product Type | Dream Drill |
