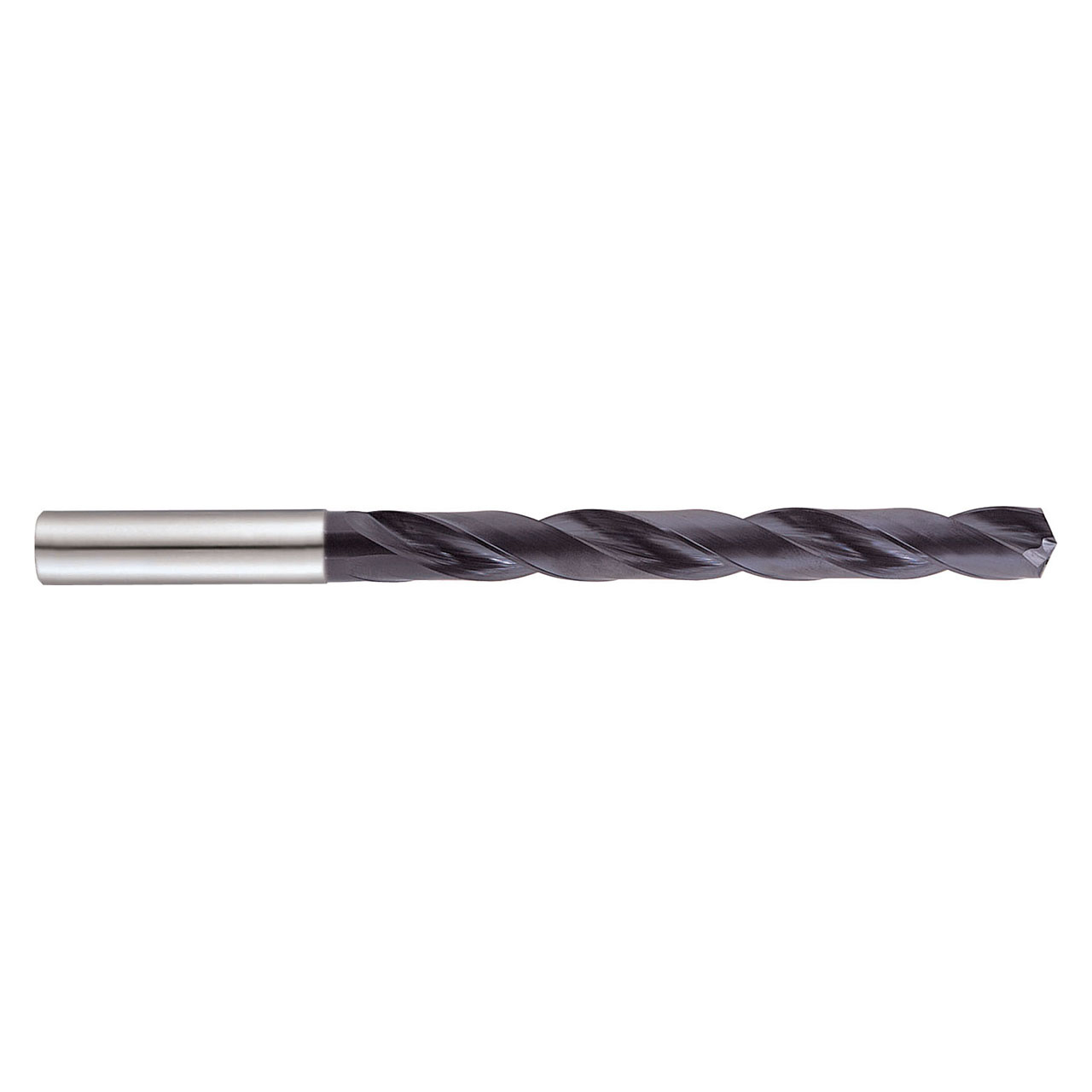

| Manufacturer Part Number | DTX421095 |
| Cutting Diameter (Inch) | 3/8" |
| Cutting Diameter (Decimal Inch) | 0.374" |
| Cutting Diameter (mm) | 9.50mm |
| Shank Diameter (Inch) | 37/94" |
| Shank Diameter (Decimal Inch) | 0.393" |
| Shank Diameter (mm) | 10.00mm |
| Flute Length (Inch) | 3-57/77" |
| Flute Length (Decimal Inch) | 3.740" |
| Flute Length (mm) | 95.00mm |
| Overall Length (Inch) | 5-13/22" |
| Overall Length (Decimal Inch) | 5.590" |
| Overall Length (mm) | 142.00mm |
| Point Length (Decimal Inch) | 0.068" |
| Point Length (mm) | 1.73mm |
| Number of Flutes | 2 |
| Point Angle (Degree) | 140 Degree |
| Helix Angle (Degree) | 30 Degree |
| Shank Tolerance | h6 |
| Coolant Pressure | 20 Bar |
| Cutting Direction | Right Hand |
| Coating | RCH Coated |
| Material | Carbide |
| Product Type | Dream Drill |
