Features

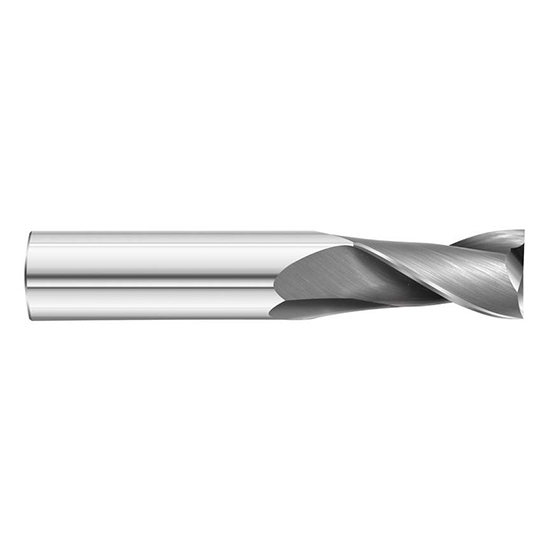

- High precision solid carbide end mill(s) made from the largest end mill manufacturer in the world!
- Precision ground using the highest quality grinding wheels
- Premium 10% Micrograin Carbide- perfect for your general purpose or difficult application!
Product Specifications
| Brand | All Industrial |
| Model # | E5020006S |
| Number of Flutes | 2 |
| Cutting Diameter (Inch) | 3/32" |
| Length of Cut (Inch) | |
| Overall Length (Inch) | 1-1/2" |
| Finish/Coating | Uncoated |
| Helix | 30 |
| Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Center Cutting | Yes |
| Flute Type | Spiral |
| Cutting Diameter Tolerance | +0.0000/ -0.0012" |
| Shank Diameter Tolerance | +0.0000/ -0.0005" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
All Industrial
Mill Diameter (Inch):
1/16"
Length of Cut (Inch):
3/8"
Shank Diameter (Inch):
1/8"
Overall Length (Inch):
1-1/2"
Material:
Solid Carbide
Finish/Coating:
Uncoated
Single or Double End:
Single
Cutting Direction:
Right Hand
Flute Direction:
Right Hand
Center Cutting:
Yes
Number of Flutes:
2
Ships:
From Partner Facility
