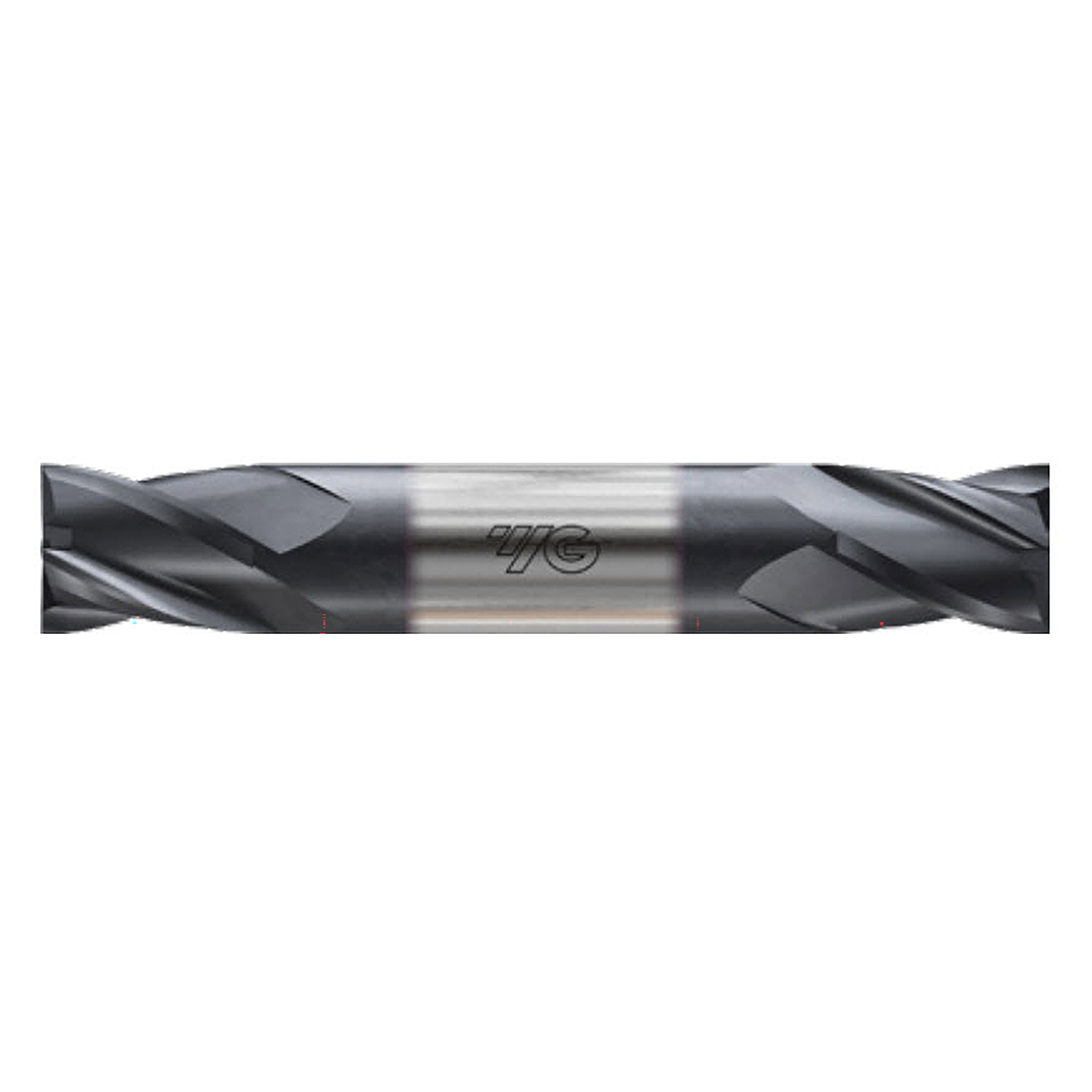

| Manufacturer Part Number | E5H85033 |
| Mill Diameter (Inch) | 33/64" |
| Mill Diameter (Decimal Inch) | 0.5156" |
| Mill Diameter (mm) | 13.10mm |
| Shank Diameter (Inch) | 9/16" |
| Shank Diameter (Decimal Inch) | 0.5625" |
| Shank Diameter (mm) | 14.29mm |
| Length of Cut (Inch) | 1-1/4" |
| Length of Cut (Decimal Inch) | 1.2500" |
| Length of Cut (mm) | 31.75mm |
| Overall Length (Inch) | 3-1/2" |
| Overall Length (Decimal Inch) | 3.5000" |
| Overall Length (mm) | 88.90mm |
| Helix | 30 Degree |
| Series | E5H85 |
| Coated | Bright |
| Material | Carbide |
| Type | Square Single End |
| Corner Type | Square |
