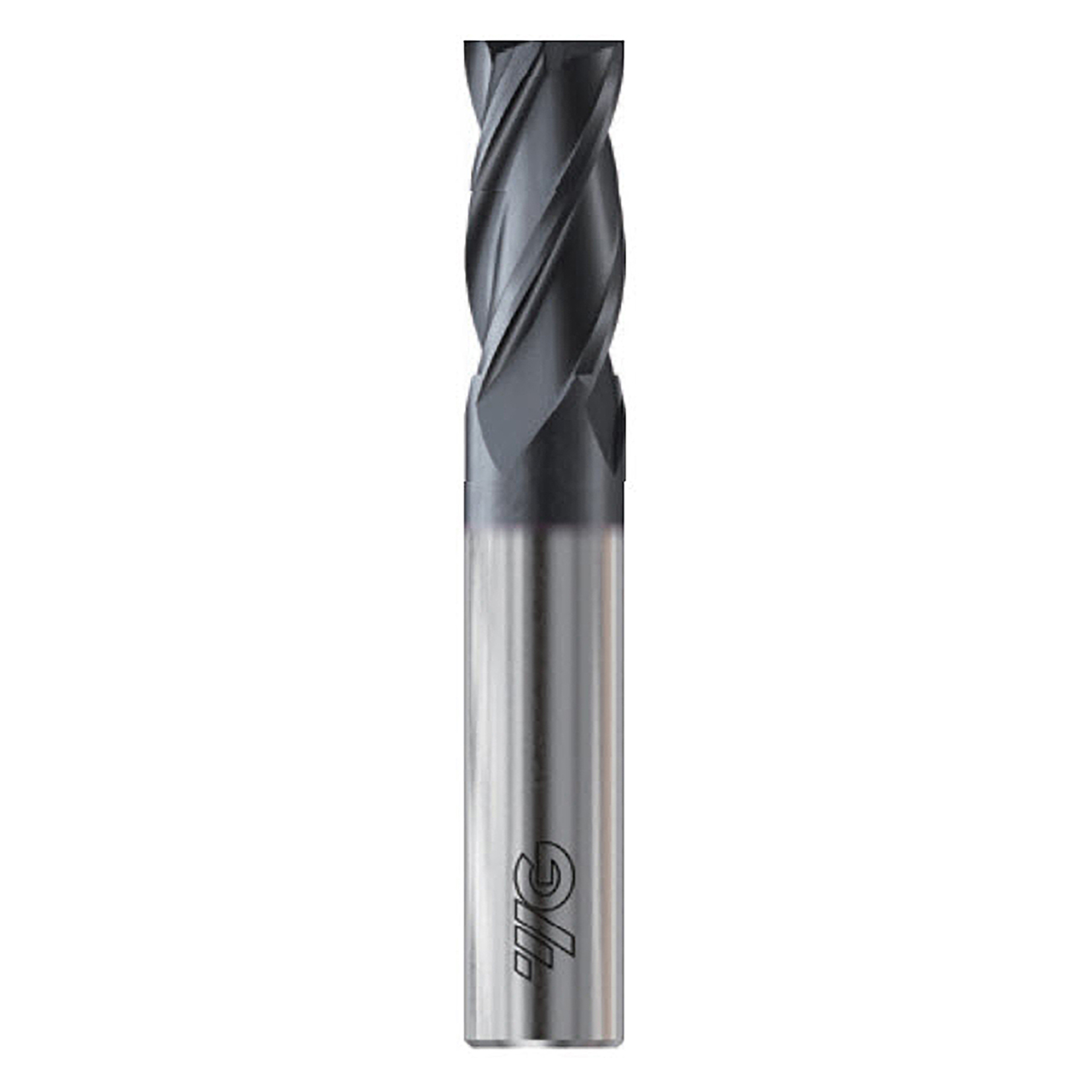

Product Specifications
| Manufacturer Part Number | E5H89250 |
| Mill Diameter (Inch) | 62/63" |
| Mill Diameter (Decimal Inch) | 0.9843" |
| Mill Diameter (mm) | 25.00mm |
| Shank Diameter (Inch) | 62/63" |
| Shank Diameter (Decimal Inch) | 0.9843" |
| Shank Diameter (mm) | 25.00mm |
| Length of Cut (Inch) | 1-1/2" |
| Length of Cut (Decimal Inch) | 1.4961" |
| Length of Cut (mm) | 38.00mm |
| Overall Length (Inch) | 4-1/64" |
| Overall Length (Decimal Inch) | 4.0157" |
| Overall Length (mm) | 102.00mm |
| Helix | 30 Degree |
| Series | E5H89 |
| Coated | Bright |
| Material | Carbide |
| Type | Square Single End |
| Corner Type | Square |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
62/63"
Mill Diameter (Decimal Inch):
0.9843"
Mill Diameter (mm):
25.00mm
Length of Cut (Inch):
1-1/2"
Length of Cut (Decimal Inch):
1.4961"
Length of Cut (mm):
38.00mm
Material:
Carbide
Coating:
Bright
Shank Diameter (Inch):
62/63"
Shank Diameter (Decimal Inch):
0.9843"
Shank Diameter (mm):
25.00mm
Overall Length (Inch):
4-1/64"
Overall Length (Decimal Inch):
4.0157"
Overall Length (mm):
102.00mm
Helix Angle:
30 Degree
Single or Double End:
Single End
