Product Specifications

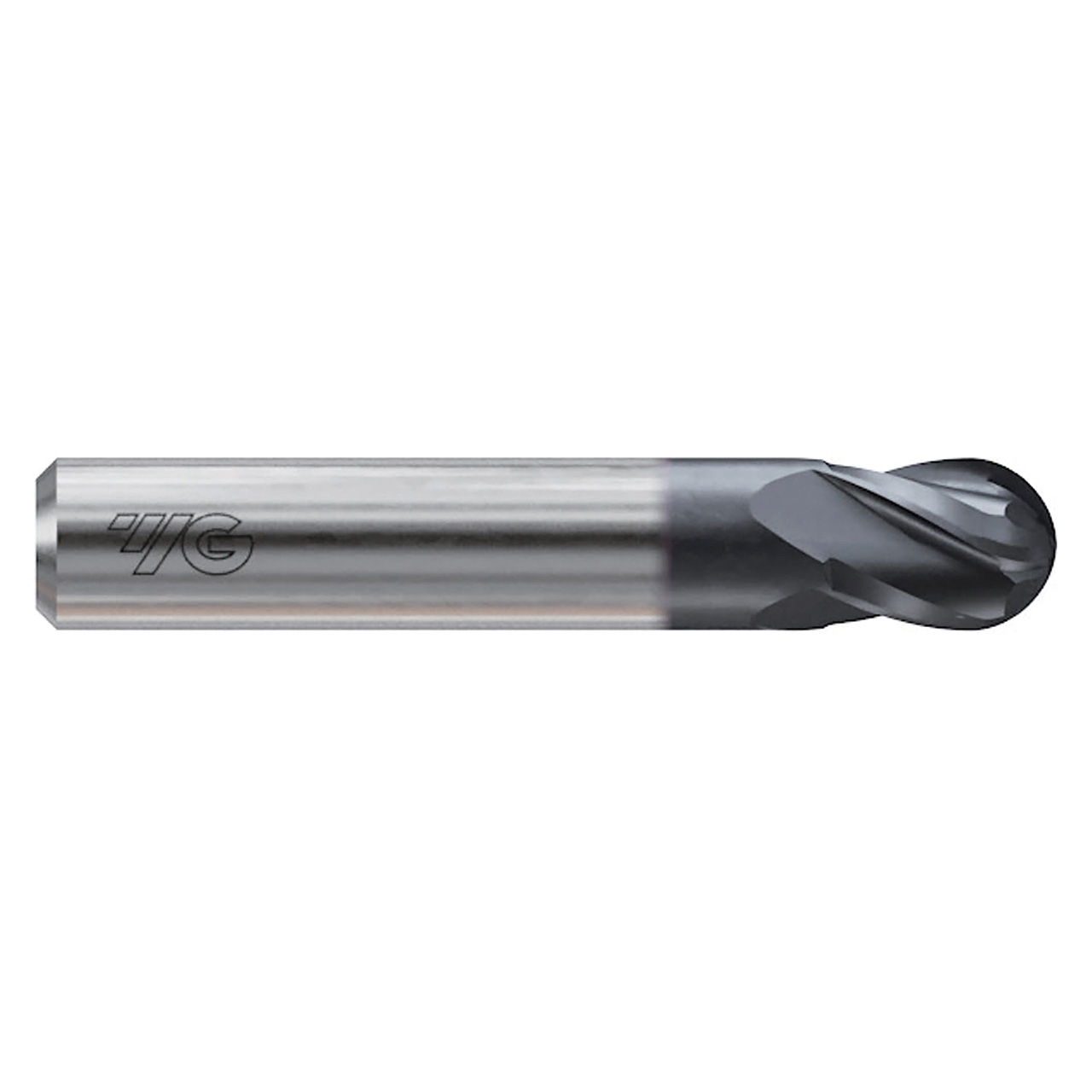

| Manufacturer Part Number | E5H99009 |
| Mill Diameter (Inch) | 9/64" |
| Mill Diameter (Decimal Inch) | 0.140" |
| Mill Diameter (mm) | 3.57mm |
| Shank Diameter (Inch) | 3/16" |
| Shank Diameter (Decimal Inch) | 0.187" |
| Shank Diameter (mm) | 4.76mm |
| Length of Cut (Inch) | 9/32" |
| Length of Cut (Decimal Inch) | 0.281" |
| Length of Cut (mm) | 7.14mm |
| Overall Length (Inch) | 2" |
| Overall Length (Decimal Inch) | 2.000" |
| Overall Length (mm) | 50.80mm |
| Ball Nose Radius (Inch) | 5/71" |
| Ball Nose Radius (Decimal Inch) | 0.070" |
| Ball Nose Radius (mm) | 1.79mm |
| Number of Flutes | 4 |
| Helix Angle (Degree) | 30 Degree |
| Coating | Bright Coated |
| Material | Carbide |
| Product Type | Ball End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Cutting Diameter (Inch):
9/64"
Cutting Diameter (Decimal Inch):
0.1400"
Cutting Diameter (mm):
3.57mm
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1870"
Shank Diameter (mm):
4.76mm
Length of Cut (Inch):
9/32"
Length of Cut (Decimal Inch):
0.2810"
Length of Cut (mm):
7.14mm
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Overall Length (mm):
50.80mm
Number of Flutes:
4
Helix Angle:
30 Degree
Finish/Coating:
Bright Coated
Material:
Carbide
interval quantity:
1
