Product Specifications
| Manufacturer Part Number | E5H99013 |
| Mill Diameter (Inch) | 13/64" |
| Mill Diameter (Decimal Inch) | 0.203" |
| Mill Diameter (mm) | 5.16mm |
| Shank Diameter (Inch) | 1/4" |
| Shank Diameter (Decimal Inch) | 0.250" |
| Shank Diameter (mm) | 6.35mm |
| Length of Cut (Inch) | 3/8" |
| Length of Cut (Decimal Inch) | 0.375" |
| Length of Cut (mm) | 9.53mm |
| Overall Length (Inch) | 2" |
| Overall Length (Decimal Inch) | 2.000" |
| Overall Length (mm) | 50.80mm |
| Ball Nose Radius (Inch) | 7/69" |
| Ball Nose Radius (Decimal Inch) | 0.101" |
| Ball Nose Radius (mm) | 2.58mm |
| Number of Flutes | 4 |
| Helix Angle (Degree) | 30 Degree |
| Coating | Bright Coated |
| Material | Carbide |

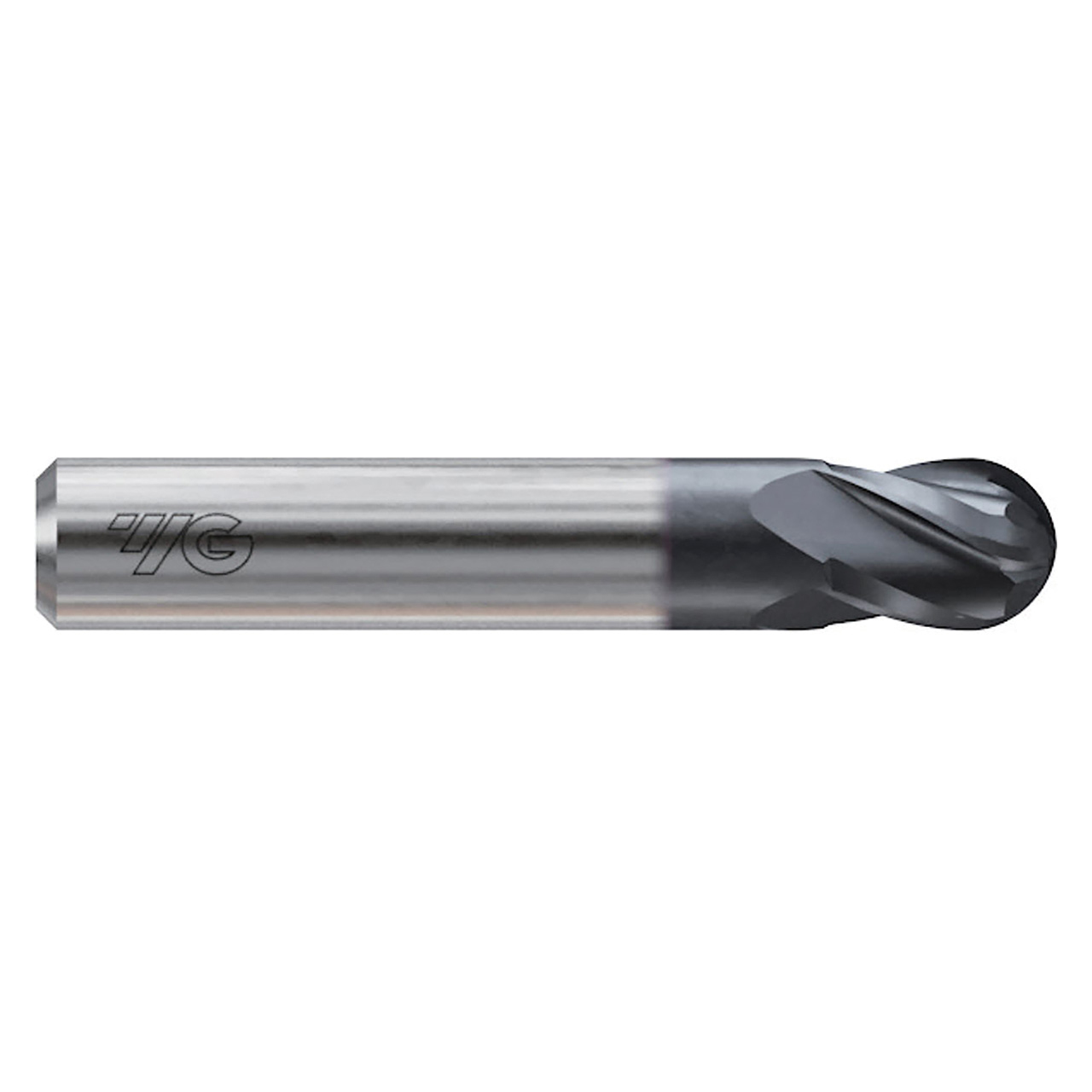

| Product Type | Ball End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Cutting Diameter (Inch):
13/64"
Cutting Diameter (Decimal Inch):
0.2030"
Cutting Diameter (mm):
5.16mm
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Length of Cut (Inch):
3/8"
Length of Cut (Decimal Inch):
0.3750"
Length of Cut (mm):
9.53mm
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Overall Length (mm):
50.80mm
Number of Flutes:
4
Helix Angle:
30 Degree
Finish/Coating:
Bright Coated
Material:
Carbide
interval quantity:
1
