Product Specifications
| Manufacturer Part Number | E5I01005 |
| Mill Diameter (Inch) | 5/64" |
| Mill Diameter (Decimal Inch) | 0.078" |
| Mill Diameter (mm) | 1.98mm |
| Shank Diameter (Inch) | 1/8" |
| Shank Diameter (Decimal Inch) | 0.125" |
| Shank Diameter (mm) | 3.18mm |
| Length of Cut (Inch) | 1/8" |
| Length of Cut (Decimal Inch) | 0.125" |
| Length of Cut (mm) | 3.18mm |
| Overall Length (Inch) | 1-1/2" |
| Overall Length (Decimal Inch) | 1.500" |
| Overall Length (mm) | 38.10mm |
| Ball Nose Radius (Inch) | 3/77" |
| Ball Nose Radius (Decimal Inch) | 0.039" |
| Ball Nose Radius (mm) | 0.99mm |
| Number of Flutes | 4 |
| Helix Angle (Degree) | 30 Degree |
| Coating | Bright Coated |
| Material | Carbide |

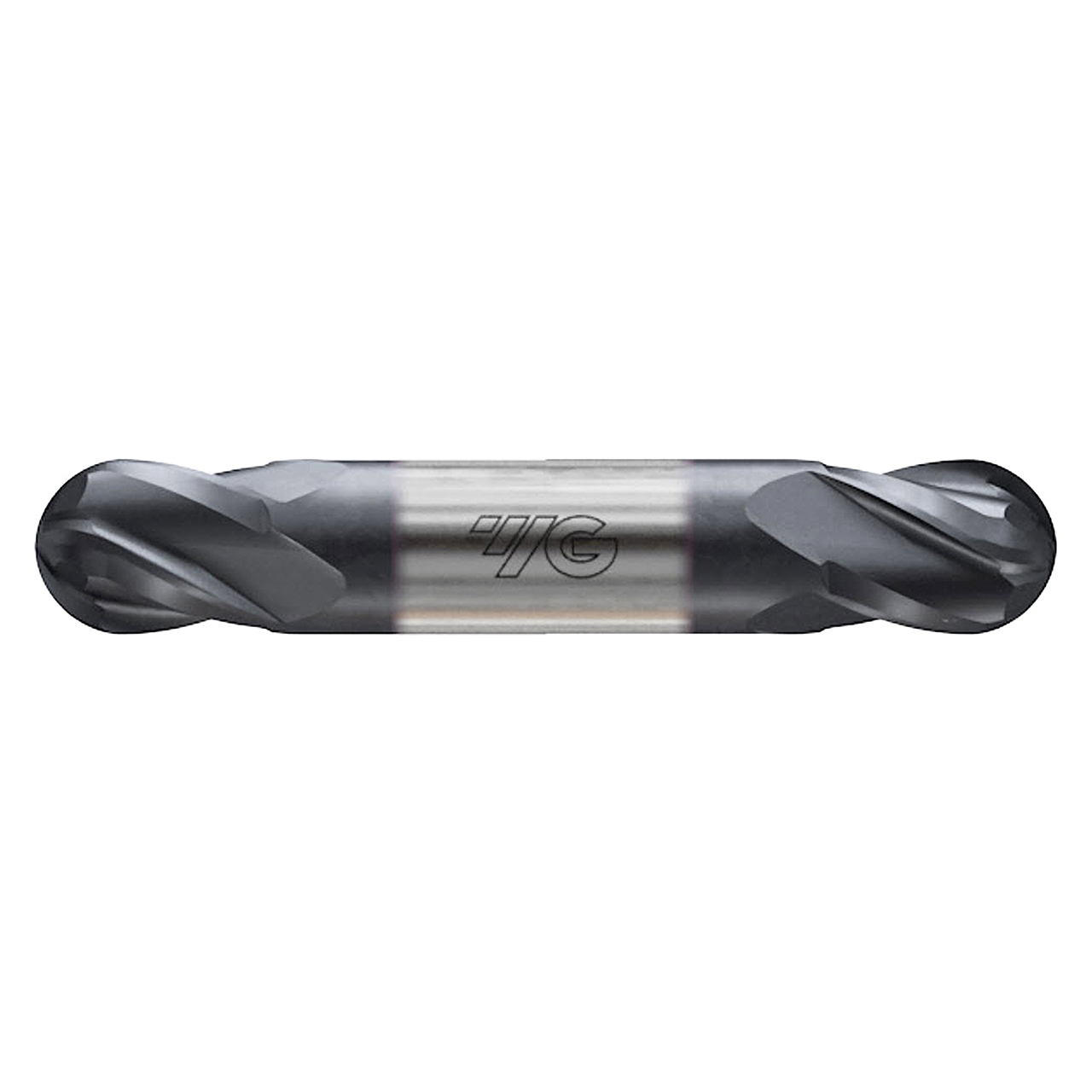

| Product Type | Double Ended Ball End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Cutting Diameter (Inch):
5/64"
Cutting Diameter (Decimal Inch):
0.0780"
Cutting Diameter (mm):
1.98mm
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Length of Cut (Inch):
1/8"
Length of Cut (Decimal Inch):
0.1250"
Length of Cut (mm):
3.18mm
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Overall Length (mm):
38.10mm
Number of Flutes:
4
Helix Angle:
30 Degree
Finish/Coating:
Bright Coated
Material:
Carbide
interval quantity:
1
