Product Specifications

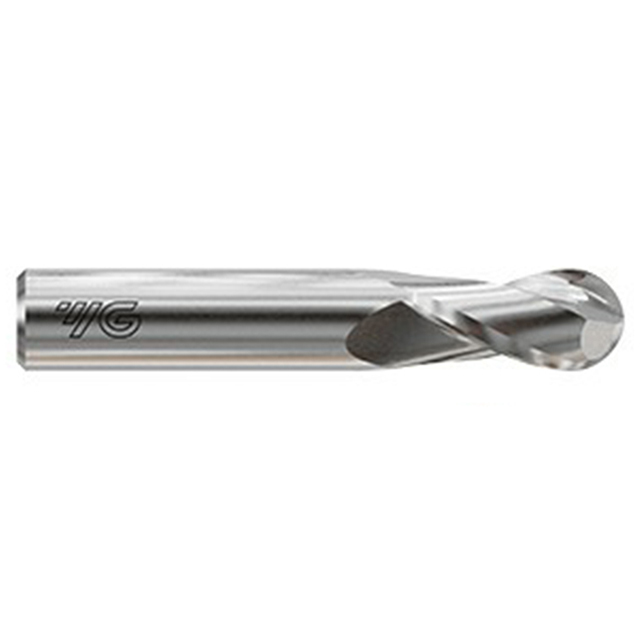

| Manufacturer Part Number | E5I02010 |
| Mill Diameter (Inch) | 5/32" |
| Mill Diameter (Decimal Inch) | 0.1563" |
| Mill Diameter (mm) | 3.97mm |
| Shank Diameter (Inch) | 3/16" |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Shank Diameter (mm) | 4.76mm |
| Length of Cut (Inch) | 9/16" |
| Length of Cut (Decimal Inch) | 0.5625" |
| Length of Cut (mm) | 14.29mm |
| Overall Length (Inch) | 2" |
| Overall Length (Decimal Inch) | 2.0000" |
| Overall Length (mm) | 50.80mm |
| Ball Nose (Decimal Inch) | 0.0781" |
| Ball Nose (Inch) | 5/64" |
| Ball Nose (mm) | 1.98mm |
| Helix | 30 Degree |
| Series | E5I02 |
| Coated | Bright |
| Material | Carbide |
| Type | Ball Nose Single End |
| Corner Type | Ball Nose |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Coating:
Bright
Single or Double End:
Single End
Helix Angle:
30 Degree
interval quantity:
1
