Product Specifications

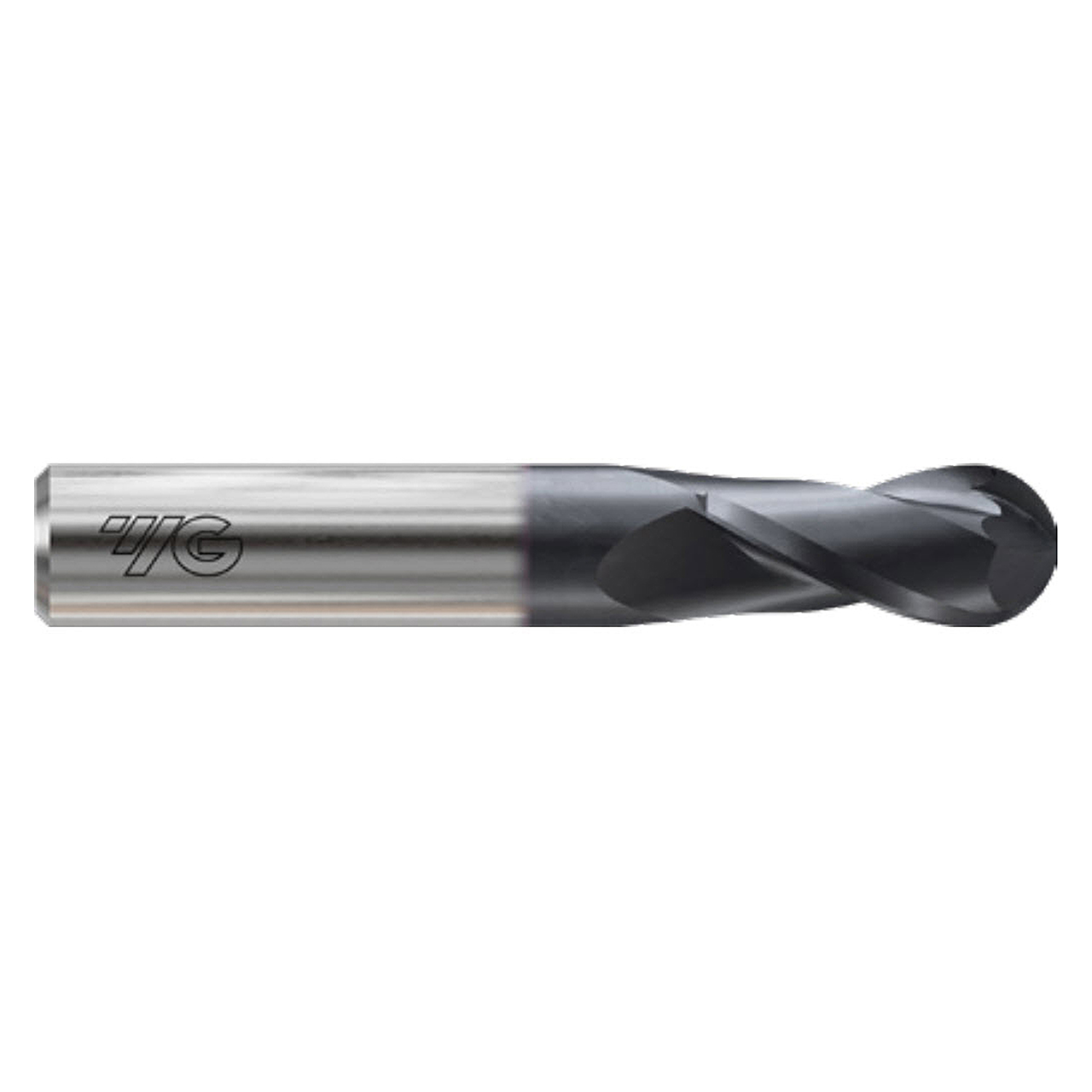

| Manufacturer Part Number | E5I03140 |
| Mill Diameter (Inch) | 43/78" |
| Mill Diameter (Decimal Inch) | 0.5512" |
| Mill Diameter (mm) | 14.00mm |
| Shank Diameter (Inch) | 43/78" |
| Shank Diameter (Decimal Inch) | 0.5512" |
| Shank Diameter (mm) | 14.00mm |
| Length of Cut (Inch) | 1 20/77" |
| Length of Cut (Decimal Inch) | 1.2598" |
| Length of Cut (mm) | 32.00mm |
| Overall Length (Inch) | 3 25/46" |
| Overall Length (Decimal Inch) | 3.5433" |
| Overall Length (mm) | 90.00mm |
| Ball Nose (Decimal Inch) | 0.2362" |
| Ball Nose (Inch) | 30/127" |
| Ball Nose (mm) | 6.00mm |
| Helix | 30 Degree |
| Series | E5I03 |
| Coated | Bright |
| Material | Carbide |
| Type | Ball Nose Single End |
| Corner Type | Ball Nose |
