Product Specifications
| # Manufacturer Number | E9A87048TF |
| Diameter (Decimal Inch) | 0.7500" |
| Diameter (Inch) | 3/4" |
| Diameter (mm) | 19.05mm |
| Shank Diameter (Decimal Inch) | 0.6250" |
| Shank Diameter (Inch) | 5/8" |
| Shank Diameter (mm) | 15.88mm |
| Overall Length (Decimal Inch) | 5.1250" |
| Overall Length (Inch) | 5-1/8" |
| Overall Length (mm) | 130.18mm |
| Length of Cut (Decimal Inch) | 3.0000" |
| Length of Cut (Inch) | 3" |
| Length of Cut (mm) | 76.20mm |
| Helix Angle (Degree) | 30 Degree |
| Number of Flute | 4 |
| Coating | TiAlN |
| Material | Premium HSS-PM |
| Cut Type | Center Cut |
| Shank Style | Flat |
| Series | E9A87 |
| Cutting Direction | Right |

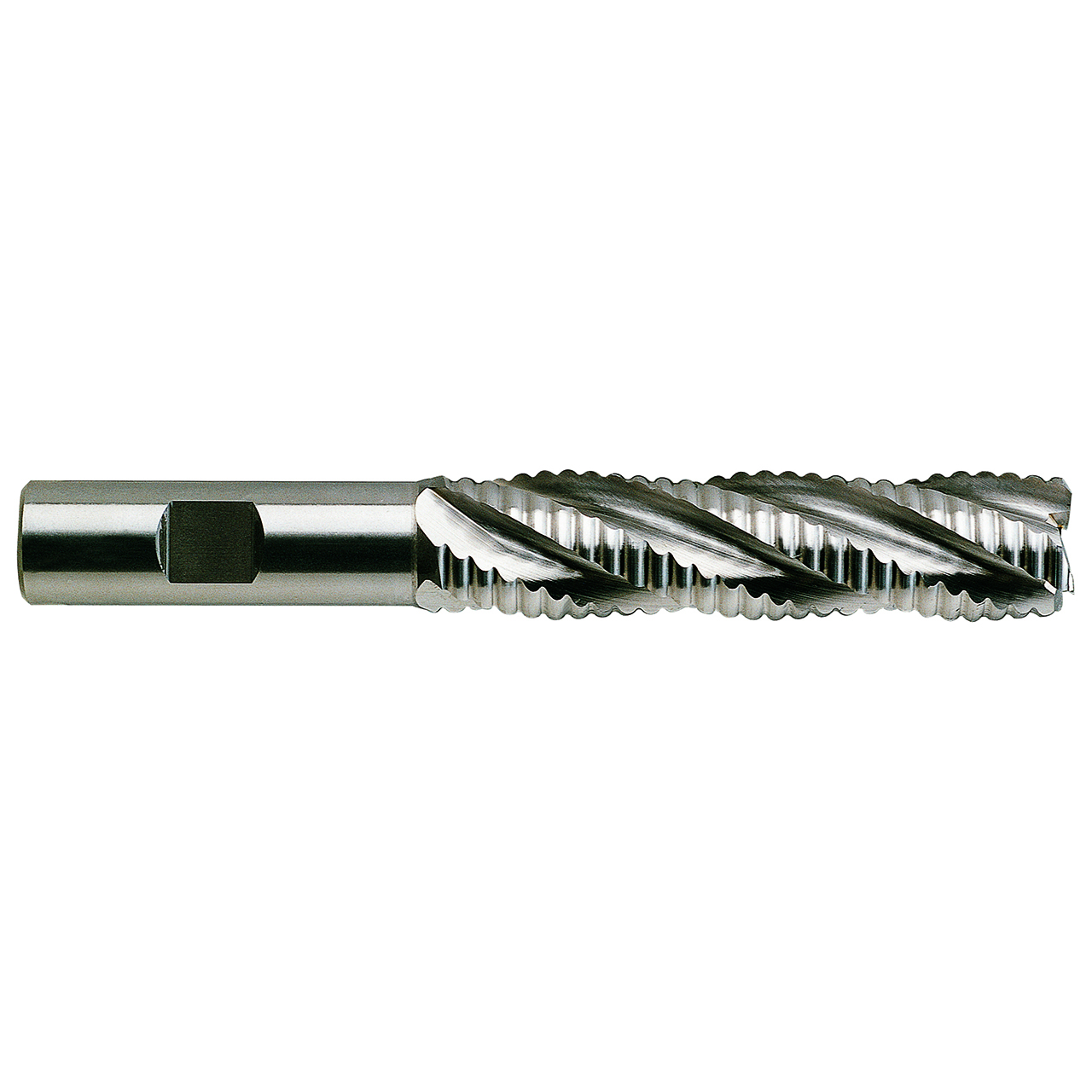

| Product Type | Roughing End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
3/4"
Mill Diameter (Decimal Inch):
0.7500"
Mill Diameter (mm):
19.05mm
Number of Flutes:
4
Length of Cut (Inch):
3"
Length of Cut (Decimal Inch):
3.0000"
Length of Cut (mm):
76.20mm
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Shank Diameter (mm):
15.88mm
Material:
Premium HSS-PM
Finish/Coating:
TiAlN
Overall Length (Inch):
5-1/8"
Overall Length (Decimal Inch):
5.1250"
Overall Length (mm):
130.18mm
Center Cutting (yes/no):
Yes
