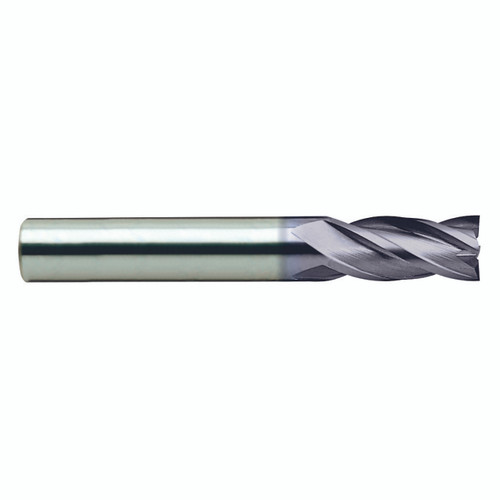

__95011.1694683857.jpg?c=2 "EH540(M).jpg")
Product Specifications
| EDP Number | EH540160 |
| Diameter (Decimal Inch) | 0.6300" |
| Diameter (Inch) | 17/27" |
| Diameter (mm) | 16.00mm |
| Shank Diameter (Decimal Inch) | 0.6299" |
| Shank Diameter (Inch) | 17/27" |
| Shank Diameter (mm) | 16.00mm |
| Length of Cut (Decimal Inch) | 1.2598" |
| Length of Cut (Inch) | 1-20/77" |
| Length of Cut (mm) | 32.00mm |
| Overall Length (Decimal Inch) | 3.6220" |
| Overall-Length-(Inch) | 3-28/45" |
| Overall Length (mm) | 92.00mm |
| Helix Angle (Degree) | 30 Degree |
| Number of Flutes | 4 |
| Cutting Direction | Right |
| Application | P |
| Shank Style | Plain |
| Series | EH540 |
| Coating | YG-Tylon F |
| Material | Carbide |
| Cut Type | Center |
| Length Type | Long |
| End Type | Single End |
| Product Type | Square End Mill |
