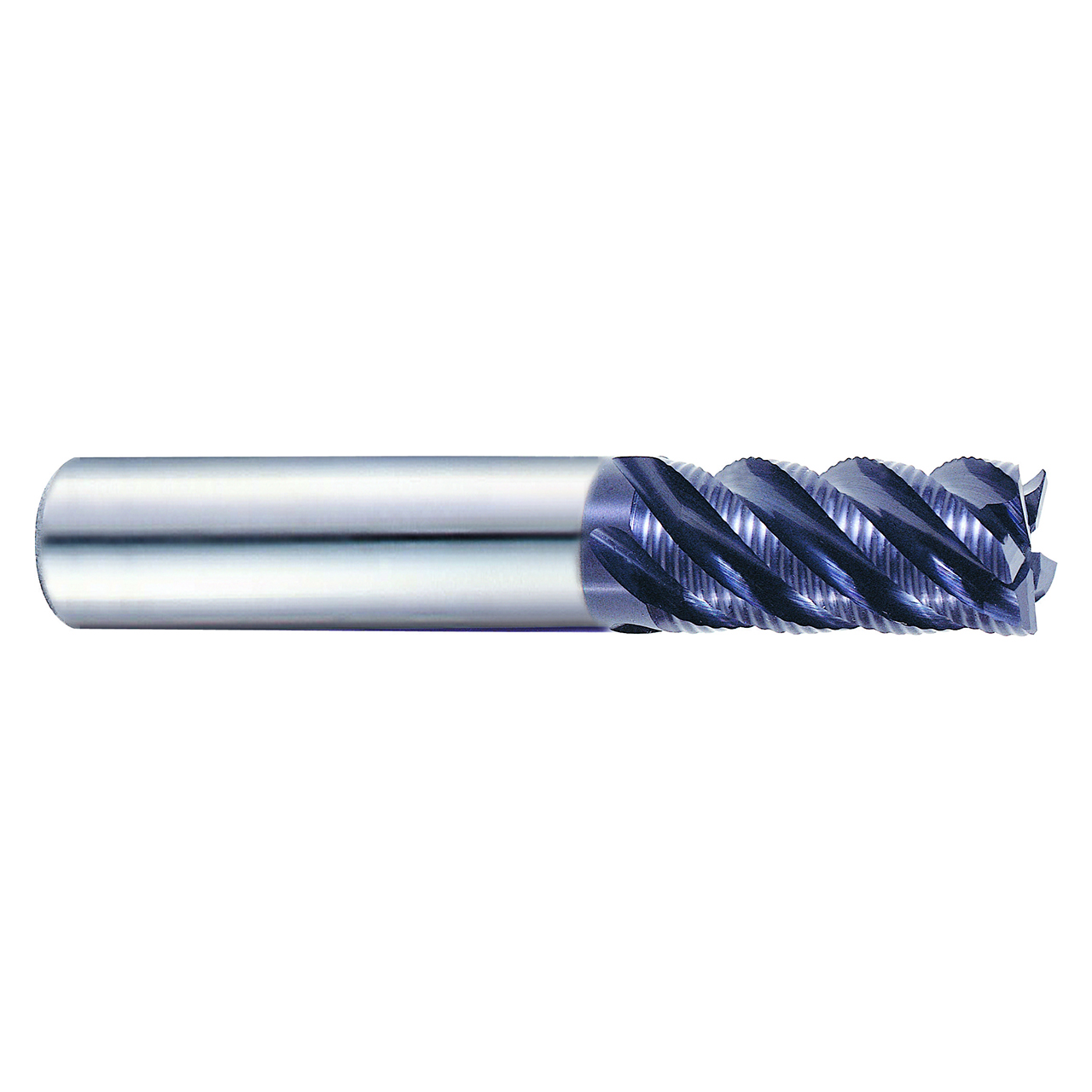

Product Specifications
| EDP Number | EH919040 |
| Diameter (Decimal Inch) | 0.1575" |
| Diameter (Inch) | 3/19" |
| Diameter (mm) | 4.00mm |
| Shank Diameter (Decimal Inch) | 0.2362" |
| Shank Diameter (Inch) | 13/55" |
| Shank Diameter (mm) | 6.00mm |
| Length of Cut (Decimal Inch) | 0.4331" |
| Length of Cut (Inch) | 13/8" |
| Length of Cut (mm) | 11.00mm |
| Overall Length (Decimal Inch) | 2.2441" |
| Overall Length (Inch) | 2-21/86" |
| Overall Length (mm) | 57.00mm |
| Number of Flutes | 3 |
| Series | EH919 |
| Helix Angle (Degree) | 45 Degree |
| Coating | TiAlN |
| Material | Carbide |
| Shank Style | Plain |
| Cut Type | Center Cut |
| Length Type | Long |
| Application | P,M,S |
| Cutting Direction | Right Hand |
| Product Type | Roughing End Mill |
