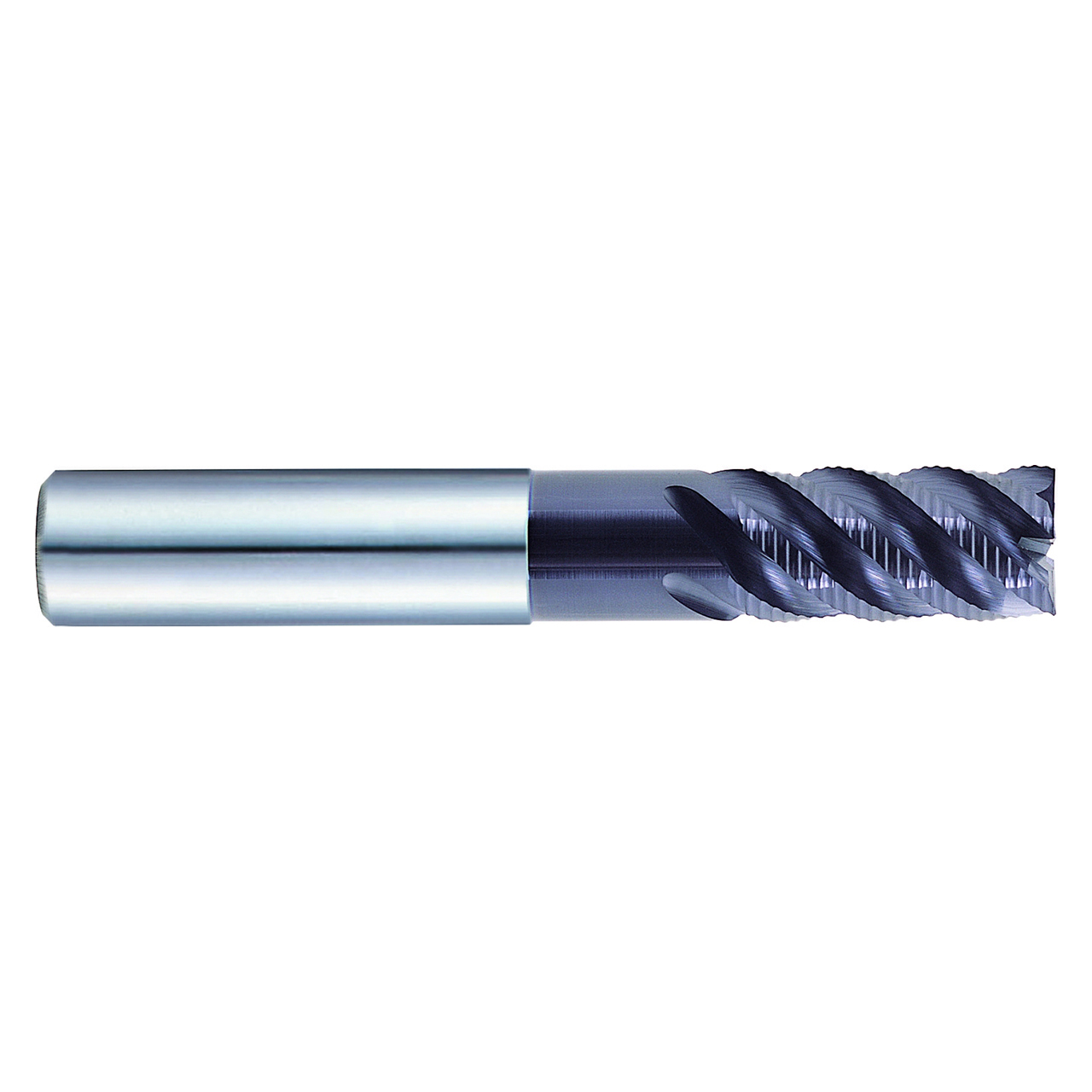

Product Specifications
| EDP Number | EH921120 |
| Diameter (Decimal Inch) | 0.4724" |
| Diameter (Inch) | 43/91" |
| Diameter (mm) | 12.00mm |
| Shank Diameter (Decimal Inch) | 0.4724" |
| Shank Diameter (Inch) | 43/91" |
| Shank Diameter (mm) | 12.00mm |
| Length of Cut (Decimal Inch) | 1.0236" |
| Length of Cut (Inch) | 1-2/8" |
| Length of Cut (mm) | 26.00mm |
| Length Below Shank (Decimal Inch) | 1.4567" |
| Length Below Shank (Inch) | 1-37/81" |
| Length Below Shank (mm) | 37.00mm |
| Overall Length (Decimal Inch) | 3.2677" |
| Overall Length (Inch) | 3-19/71" |
| Overall Length (mm) | 83.00mm |
| Neck Diameter (Decimal Inch) | 0.4528" |
| Neck Diameter (Inch) | 24/53" |
| Neck Diameter (mm) | 11.50mm |
| Number of Flutes | 4 |
| Series | EH921 |
| Helix Angle (Degree) | 45 Degree |
| Coating | TiAlN |
| Material | Carbide |
| Shank Style | Plain |
| Cut Type | Center Cut |
| Length Type | Long |
| Application | P,M,S |
| Cutting Direction | Right Hand |
| Product Type | Roughing End Mill |
