Product Specifications
| Manufacturer Part Number | EIB07903 |
| Diameter (Inch) | 1/16" |
| Diameter (Decimal Inch) | 0.0625" |
| Diameter (mm) | 1.59mm |
| Shank Diameter (Inch) | 1/8" |
| Shank Diameter (Decimal Inch) | 0.1250" |
| Shank Diameter (mm) | 3.18mm |
| Length of Cut (Inch) | 3/16" |
| Length of Cut (Decimal Inch) | 0.1875" |
| Length of Cut (mm) | 4.76mm |
| Overall Length (Inch) | 3" |
| Overall Length (Decimal Inch) | 3.0000" |
| Overall Length (mm) | 76.20mm |
| Ball Nose Radius (Inch) | 1/32" |
| Ball Nose Radius (Decimal Inch) | 0.0312" |
| Ball Nose Radius (mm) | 0.79mm |
| Neck Diameter (Decimal Inch) | 0.0570" |
| Neck Diameter (Inch) | 2/35" |
| Neck Diameter (mm) | 1.45mm |
| LBS (Inch) | 1" |
| LBS (mm) | 25.40mm |
| Number of Flute | 4 |
| Helix Angle (Degree) | 30 Degree |
| Cutting Direction | Right Hand |
| Shank Style | Plain |
| Material | Carbide |
| Coating | Diamond |

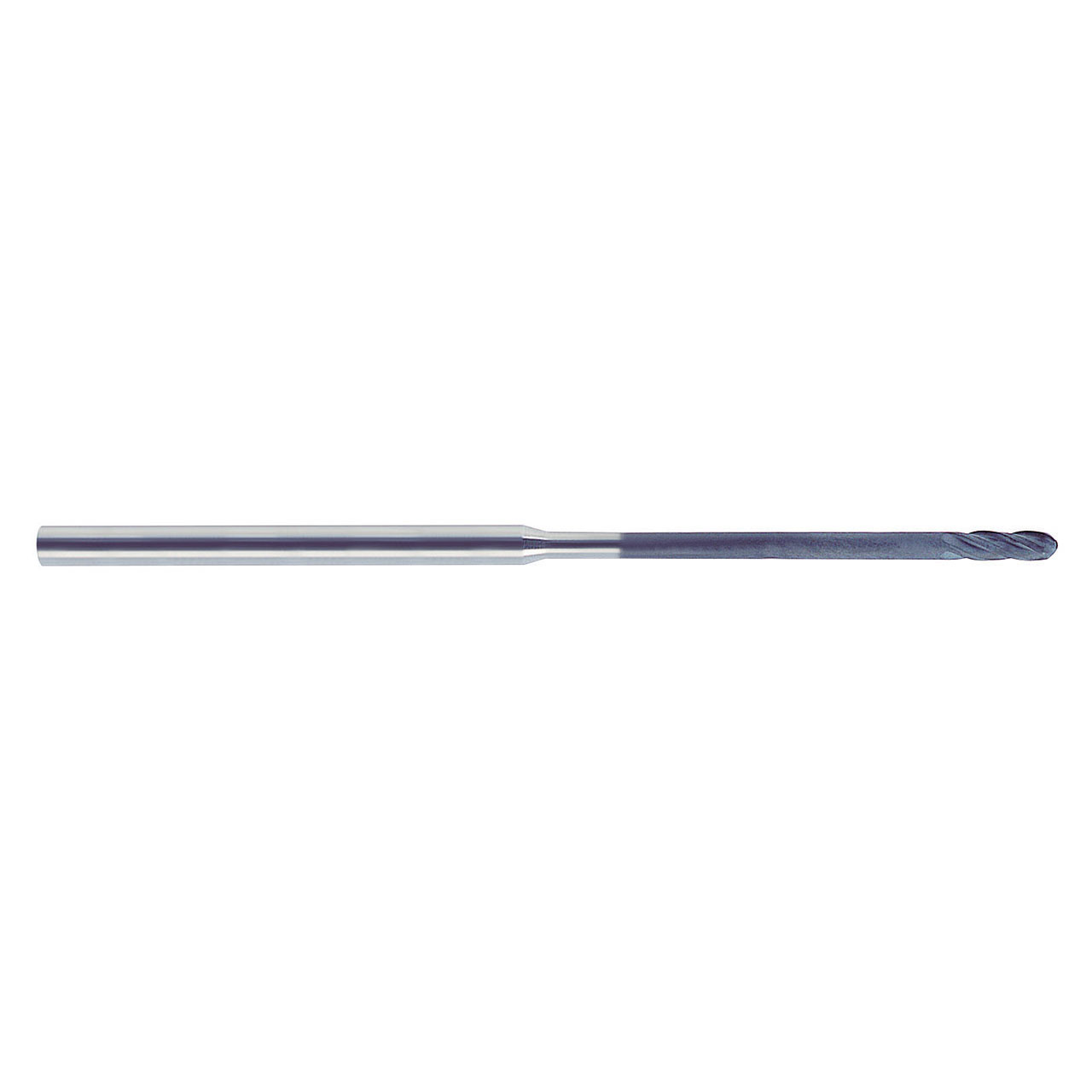

| Product Type | Ball Nose End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
1/16"
Mill Diameter (Decimal Inch):
0.0625"
Mill Diameter (mm):
1.59mm
Number of Flutes:
4
Length of Cut (Inch):
3/16"
Length of Cut (Decimal Inch):
0.1875"
Length of Cut (mm):
4.76mm
Material:
Carbide
Overall Length (Inch):
3.0000"
Overall Length (Decimal Inch):
3"
Overall Length (mm):
76.20mm
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Finish/Coating:
Diamond
Cutting Direction:
Right Hand
Helix Angle (Degree):
30 Degree
