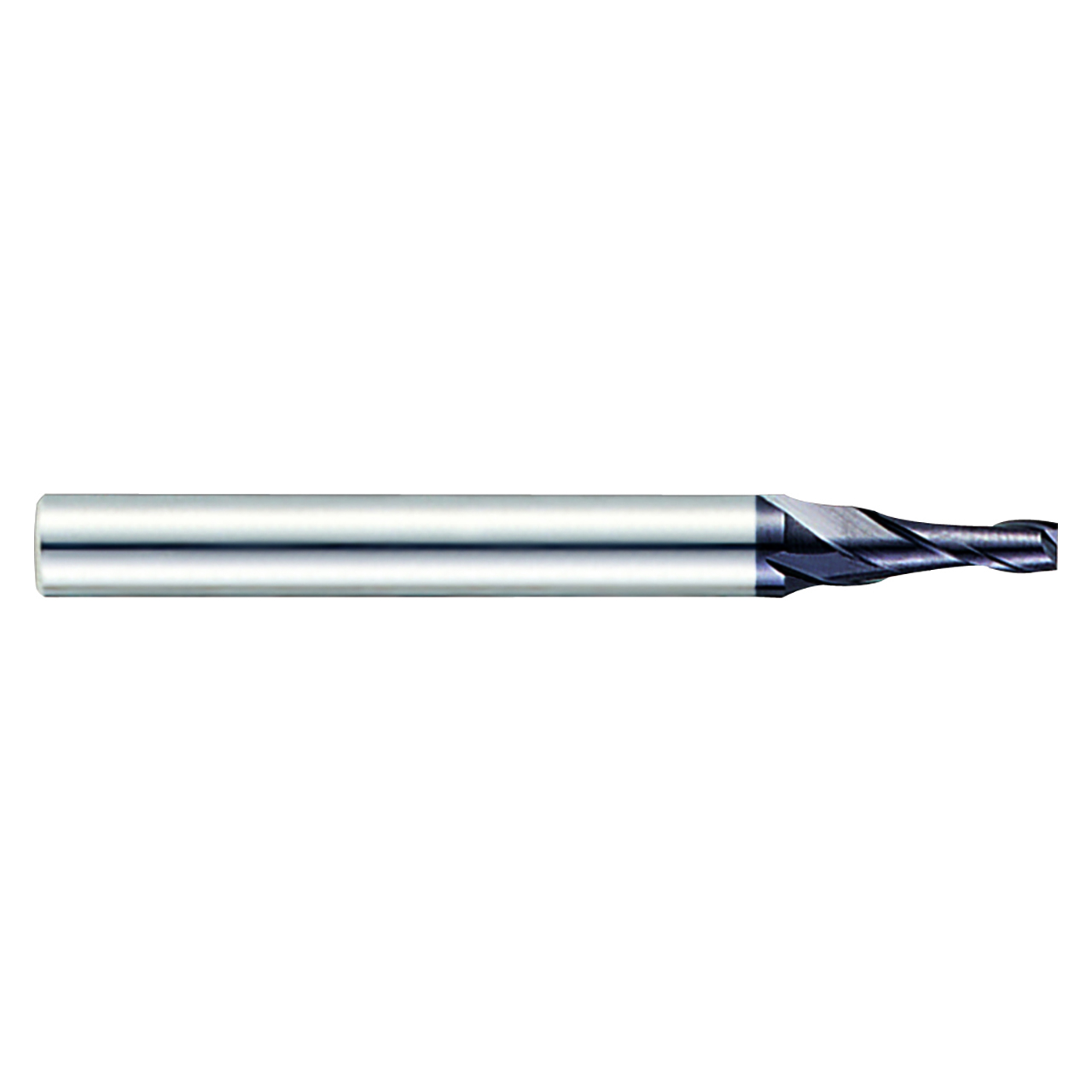

Product Specifications
| EDP Number | EM837030 |
| Diameter (Decimal Inch) | 0.1200" |
| Diameter (Inch) | 2/17" |
| Diameter (mm) | 3.00mm |
| Shank Diameter (Decimal Inch) | 0.2362" |
| Shank Diameter (Inch) | 13/55" |
| Shank Diameter (mm) | 6.00mm |
| Length of Cut (Decimal Inch) | 0.3937" |
| Length of Cut (Inch) | 37/94" |
| Length of Cut (mm) | 10.00mm |
| Overall Length (Decimal Inch) | 2.1654" |
| Overall Length (mm) | 55.00mm |
| Overall Length (Inch) | 2-1/6" |
| Number of Flutes | 2 |
| Taper Angle (Degree) | 1 Degree |
| Series | EM837 |
| Helix Angle (Degree) | 30 Degree |
| Shank Style | Plain |
| Coating | ALTiN |
| Cut Type | Center Cut |
| Material | Carbide |
| Cutting Direction | Right |
| Application | P |
| Produce Type | Tapered End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Material:
Carbide
Taper Angle Per Side:
1 Degree
Helix Angle:
30 Degree
Finish/Coating:
ALTiN
interval quantity:
1
