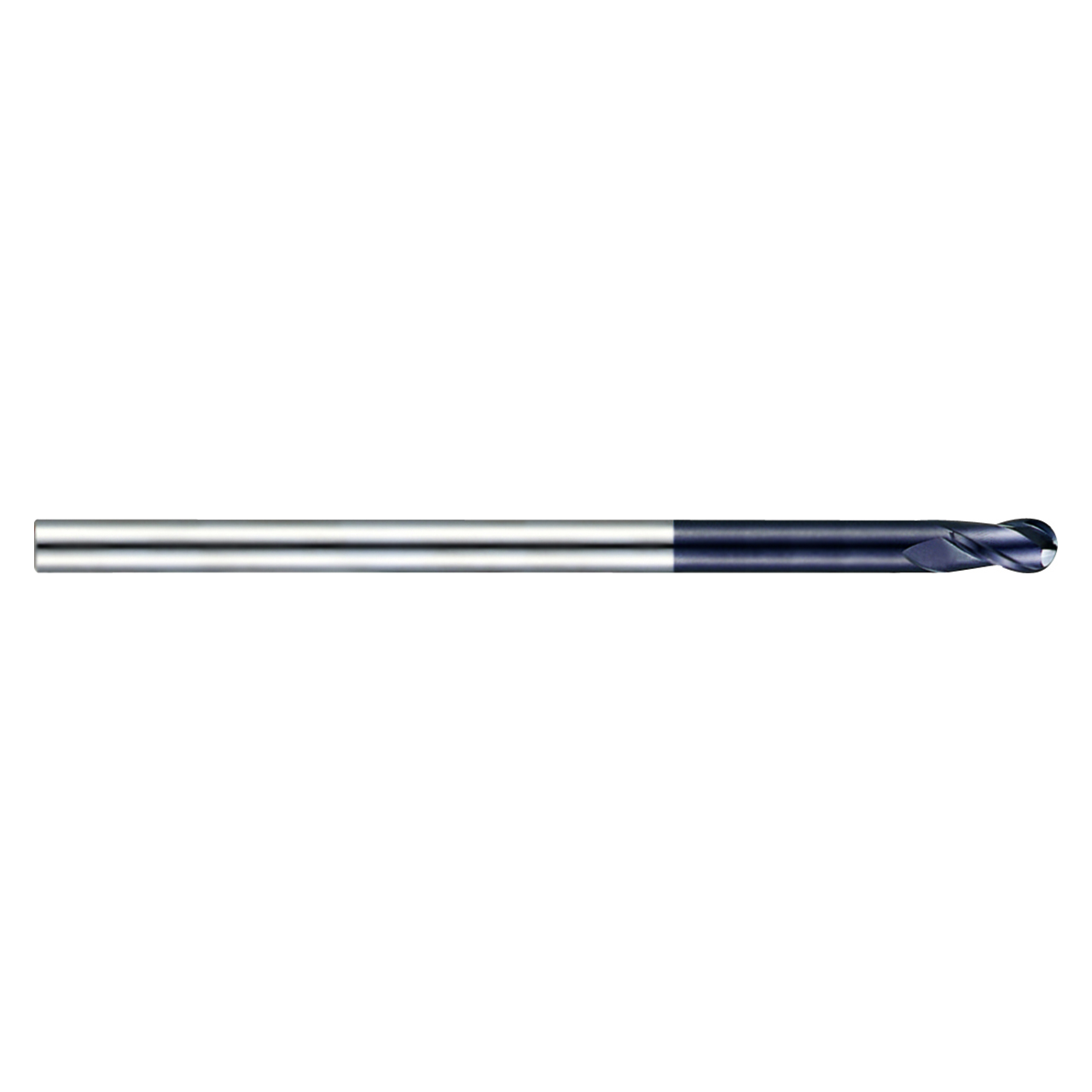

Product Specifications
| EDP Number | EM838050 |
| Diameter (Decimal Inch) | 0.2000" |
| Diameter (Inch) | 12/61" |
| Diameter (mm) | 5.00mm |
| Shank Diameter (Decimal Inch) | 0.2362" |
| Shank Diameter (Inch) | 13/55" |
| Shank Diameter (mm) | 6.00mm |
| Length of Cut (Decimal Inch) | 0.3937" |
| Length of Cut (Inch) | 37/94" |
| Length of Cut (mm) | 10.00mm |
| Overall Length (Decimal Inch) | 4.7244" |
| Overall Length (mm) | 120.00mm |
| Ball Nose Radius (Decimal Inch) | 0.0984" |
| Ball Nose Radius (Inch) | 6/61" |
| Overall Length (Inch) | 4-71/98" |
| Ball Nose Radius (mm) | 2.50mm |
| Number of Flutes | 2 |
| Series | EM838 |
| Helix Angle (Degree) | 30 Degree |
| Shank Style | Plain |
| Coating | ALTiN |
| Cut Type | Center Cut |
| Length Type | Long |
| Material | Carbide |
| Cutting Direction | Right |
| Application | P |
| Produce Type | Ball End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Finish/Coating:
ALTiN
Cutting Direction:
Right
Helix Angle:
30 Degree
Application:
P
