Product Specifications

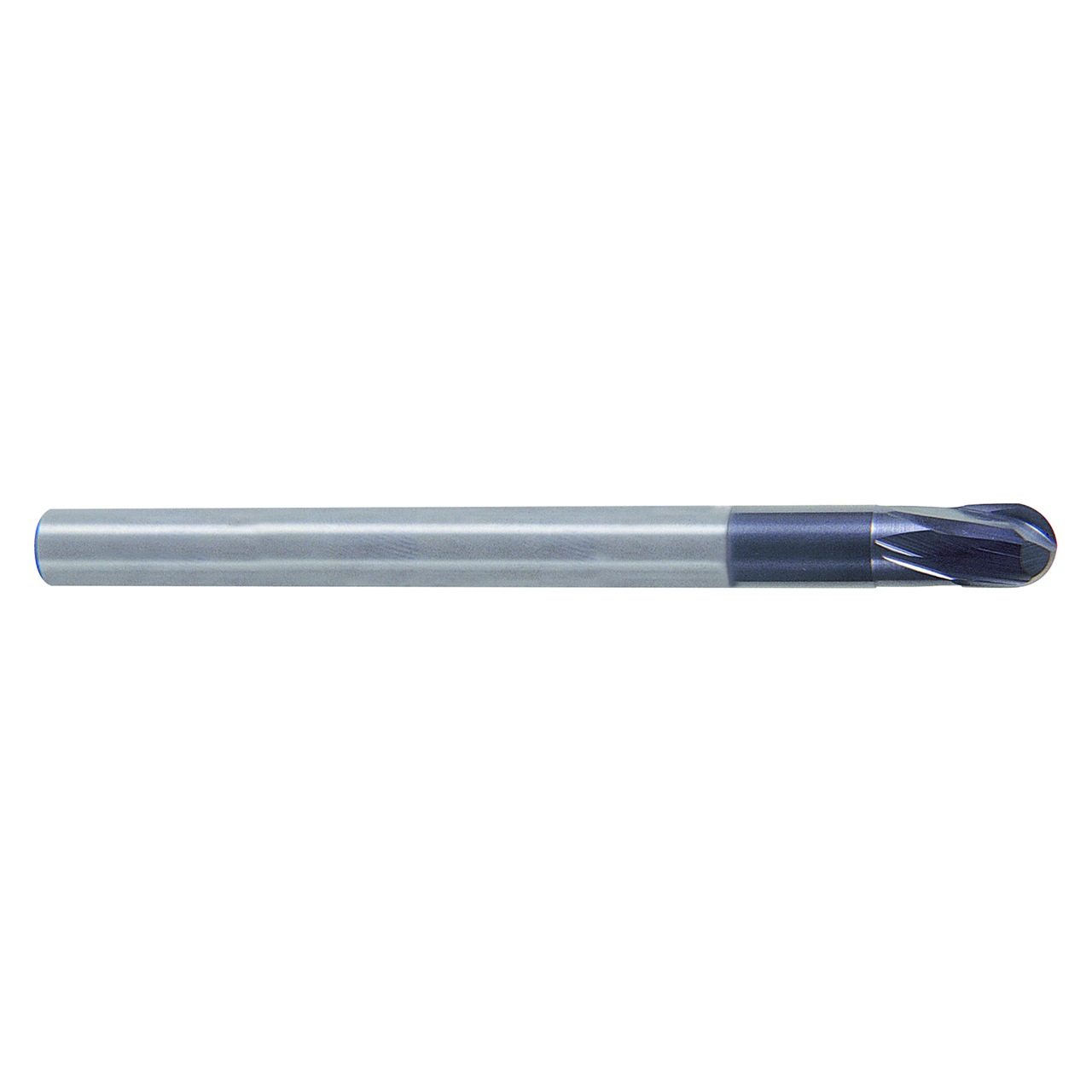

| EDP Number | EM868012 |
| Diameter (Decimal Inch) | 0.0500" |
| Diameter (Inch) | 1/21" |
| Diameter (mm) | 1.20mm |
| Shank Diameter (Decimal Inch) | 0.1575" |
| Shank Diameter (Inch) | 3/19" |
| Shank Diameter (mm) | 4.00mm |
| Length of Cut (Decimal Inch) | 0.0472" |
| Length of Cut (Inch) | 1/21" |
| Length of Cut (mm) | 1.20mm |
| Length Below Shank (Decimal Inch) | 0.1024" |
| Length Below Shank (Inch) | 4/39" |
| Length Below Shank (mm) | 2.60mm |
| Overall Length (Decimal Inch) | 1.9685" |
| Overall Length (mm) | 50.00mm |
| Ball Nose Radius (Decimal Inch) | 0.0236" |
| Ball Nose Radius (Inch) | 2/85" |
| Overall Length (Inch) | 1-31/32" |
| Neck Diameter (Decimal Inch) | 0.0433" |
| Ball Nose Radius (mm) | 0.60mm |
| Neck Diameter (Inch) | 1/23" |
| Neck Diameter (mm) | 1.10mm |
| Number of Flutes | 2 |
| Series | EM868 |
| Helix Angle (Degree) | 15 Degree |
| Shank Style | Plain |
| Coating | ALTiN |
| Cut Type | Center Cut |
| Length Type | Stub Length |
| Material | Carbide |
| Cutting Direction | Right |
| Application | P,H |
| Produce Type | Ball Nose End Mill |
