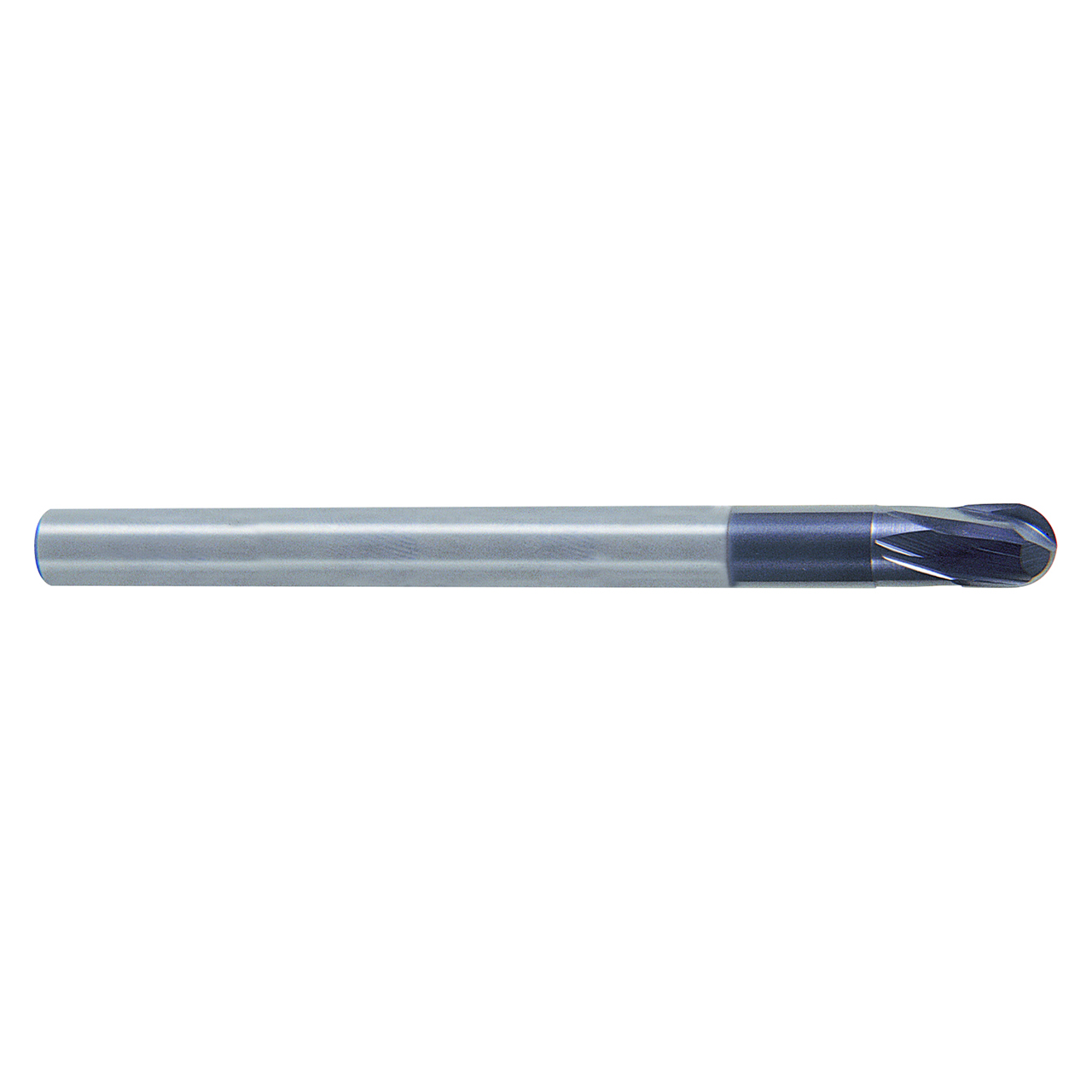

Product Specifications
| EDP Number | EM868030 |
| Diameter (Decimal Inch) | 0.1200" |
| Diameter (Inch) | 2/17" |
| Diameter (mm) | 3.00mm |
| Shank Diameter (Decimal Inch) | 0.2362" |
| Shank Diameter (Inch) | 13/55" |
| Shank Diameter (mm) | 6.00mm |
| Length of Cut (Decimal Inch) | 0.1181" |
| Length of Cut (Inch) | 2/17" |
| Length of Cut (mm) | 3.00mm |
| Length Below Shank (Decimal Inch) | 0.2362" |
| Length Below Shank (Inch) | 13/55" |
| Length Below Shank (mm) | 6.00mm |
| Overall Length (Decimal Inch) | 2.3622" |
| Overall Length (mm) | 60.00mm |
| Ball Nose Radius (Decimal Inch) | 0.0591" |
| Ball Nose Radius (Inch) | 1/17" |
| Overall Length (Inch) | 2-25/69" |
| Neck Diameter (Decimal Inch) | 0.1142" |
| Ball Nose Radius (mm) | 1.50mm |
| Neck Diameter (Inch) | 4/35" |
| Neck Diameter (mm) | 2.90mm |
| Number of Flutes | 2 |
| Series | EM868 |
| Helix Angle (Degree) | 15 Degree |
| Shank Style | Plain |
| Coating | ALTiN |
| Cut Type | Center Cut |
| Length Type | Stub Length |
| Material | Carbide |
| Cutting Direction | Right |
| Application | P,H |
| Produce Type | Ball Nose End Mill |
