Product Specifications
| EDP Number | EM876070 |
| Diameter (Decimal Inch) | 0.2800" |
| Diameter (Inch) | 8/29" |
| Diameter (mm) | 7.00mm |
| Shank Diameter (Decimal Inch) | 0.3150" |
| Shank Diameter (Inch) | 23/73" |
| Shank Diameter (mm) | 8.00mm |
| Length of Cut (Decimal Inch) | 0.3150" |
| Length of Cut (Inch) | 23/73" |
| Length of Cut (mm) | 8.00mm |
| Overall Length (Decimal Inch) | 2.2835" |
| Overall Length (mm) | 58.00mm |
| Ball Nose Radius (Decimal Inch) | 0.1378" |
| Ball Nose Radius (Inch) | 4/29" |
| Overall Length (Inch) | 2-17/60" |
| Ball Nose Radius (mm) | 3.50mm |
| Number of Flutes | 2 |
| Series | EM876 |
| Helix Angle (Degree) | 30 Degree |
| Shank Style | Plain |
| Coating | ALTiN |
| Cut Type | Center Cut |
| Length Type | Short |
| Material | Carbide |
| Cutting Direction | Right |
| Application | P |

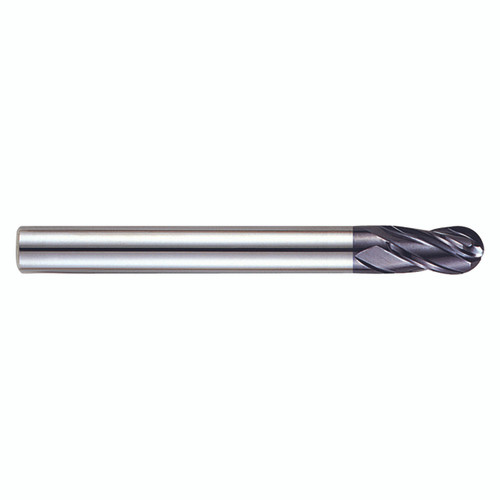

| Produce Type | Ball Nose End Mill |
