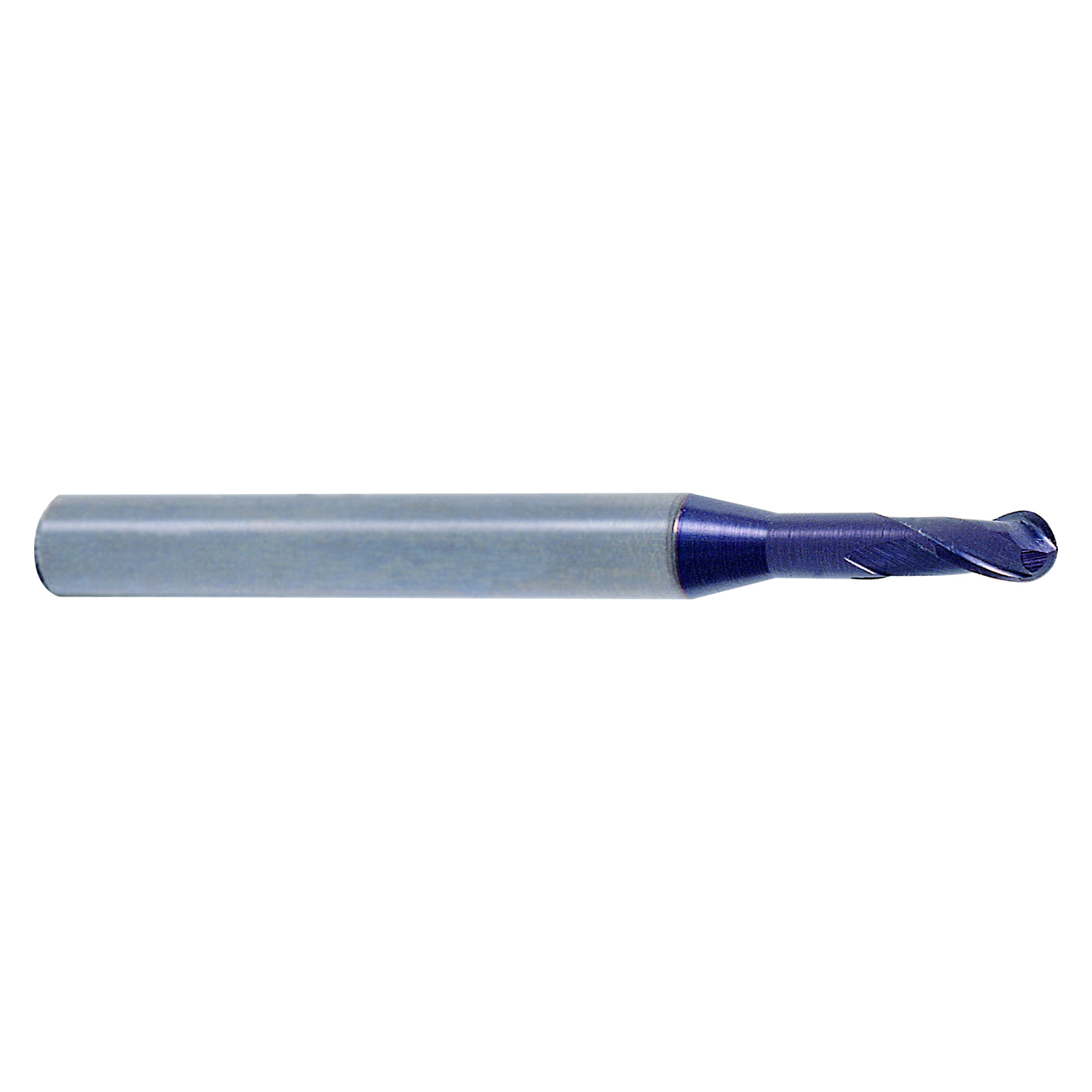

Product Specifications
| EDP Number | EM886910 |
| Diameter (Decimal Inch) | 0.0800" |
| Diameter (Inch) | 3/38" |
| Diameter (mm) | 2.00mm |
| Shank Diameter (Decimal Inch) | 0.1575" |
| Shank Diameter (Inch) | 3/19" |
| Shank Diameter (mm) | 4.00mm |
| Length of Cut (Decimal Inch) | 0.1181" |
| Length of Cut (Inch) | 2/17" |
| Length of Cut (mm) | 3.00mm |
| Length Below Shank (Decimal Inch) | 0.7874" |
| Length Below Shank (Inch) | 37/47" |
| Length Below Shank (mm) | 20.00mm |
| Overall Length (Decimal Inch) | 2.1654" |
| Overall Length (mm) | 55.00mm |
| Ball Nose Radius (Decimal Inch) | 0.0394" |
| Ball Nose Radius (Inch) | 3/76" |
| Overall Length (Inch) | 2-1/6" |
| Neck Diameter (Decimal Inch) | 0.0744" |
| Ball Nose Radius (mm) | 1.00mm |
| Neck Diameter (Inch) | 7/94" |
| Neck Diameter (mm) | 1.89mm |
| Number of Flutes | 2 |
| Series | EM886 |
| Helix Angle (Degree) | 30 Degree |
| Shank Style | Plain |
| Coating | ALTiN |
| Cut Type | Center Cut |
| Material | Carbide |
| Cutting Direction | Right |
| Application | P |
| Produce Type | Ball Nose End Mill |
