Product Specifications
| # Manufacturer Number | EMB20320 |
| Diameter (Decimal Inch) | 0.5000" |
| Diameter (Inch) | 1/2" |
| Diameter (mm) | 12.70mm |
| Shank Diameter (Decimal Inch) | 0.5000" |
| Shank Diameter (Inch) | 1/2" |
| Shank Diameter (mm) | 12.70mm |
| Length og Cut (Decimal Inch) | 0.6250" |
| Length og Cut (Inch) | 5/8" |
| Length og Cut (mm) | 15.88mm |
| Length Below Shank (Decimal Inch) | 2.2500" |
| Length Below Shank (Inch) | 2-1/4" |
| Length Below Shank (mm) | 57.20mm |
| Overall Length (Decimal Inch) | 4.0000" |
| Overall Length (Inch) | 4" |
| Overall Length (mm) | 101.60mm |
| Number of Flutes | 4 |
| Shank Style | Flat |
| Helix Angle | Variable |
| Coating | AlTiN |
| Material | Carbide |
| Cut Type | Center |
| Series | EMB20 |
| Application | PMS |
| Cutting Direction | Right |
| Length Type | Extended Length Long Reach |

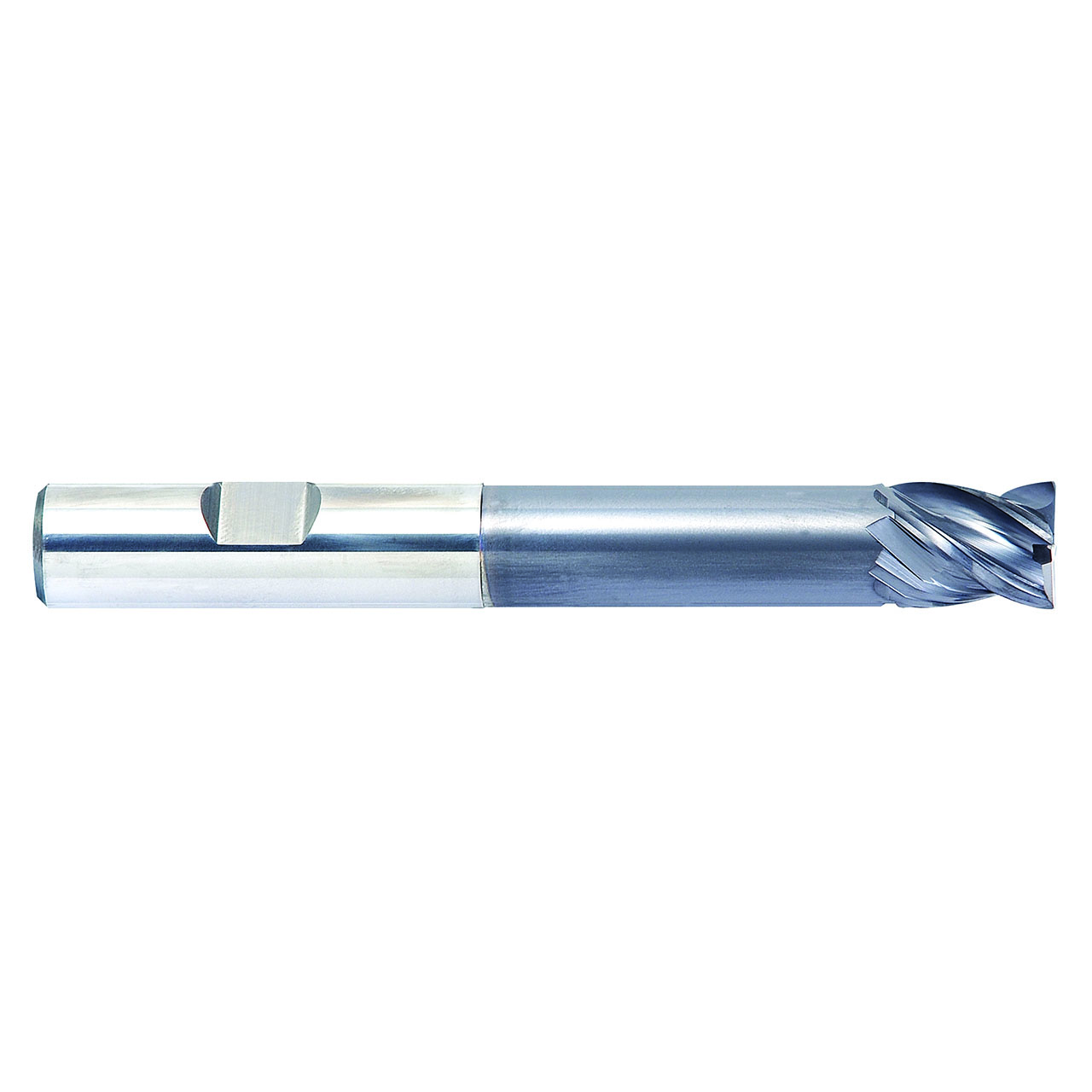

| Product Type | Square End Mill |
