Product Specifications

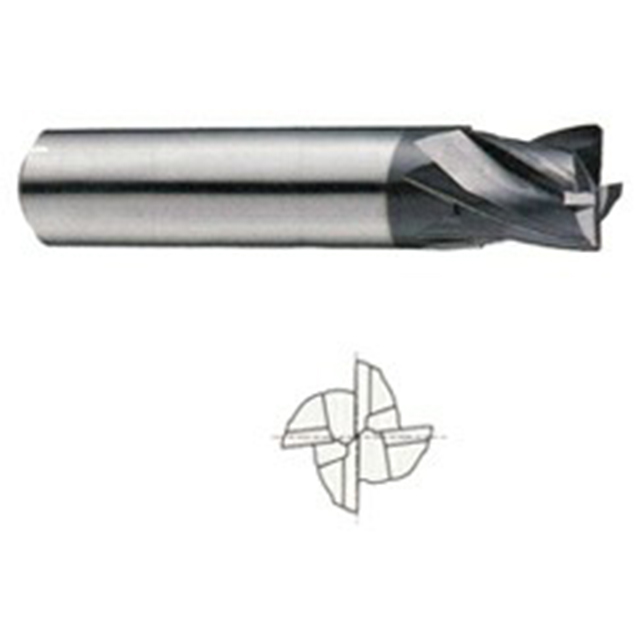

| Manufacturer Part Number | EMD57040 |
| Diameter (Inch) | 5/8" |
| Diameter (Decimal Inch) | 0.6250" |
| Diameter (mm) | 15.88mm |
| Shank Diameter (Inch) | 5/8" |
| Shank Diameter (Decimal Inch) | 0.6250" |
| Shank Diameter (mm) | 15.88mm |
| Length of Cut (Inch) | 5/8" |
| Length of Cut (Decimal Inch) | 0.6250" |
| Length of Cut (mm) | 15.88mm |
| Overall Length (Inch) | 3" |
| Overall Length (Decimal Inch) | 3.0000" |
| Overall Length (mm) | 76.20mm |
| Chamfer Size (Inch) | 1/67" |
| Chamfer Size (Decimal Inch) | 0.0150" |
| Chamfer Size (mm) | 0.38mm |
| Number of Flutes | 4 |
| Series | EMD57 |
| Shank Style | Flat |
| Coating | AlTiN |
| Application | P,M,K |
| Cutting Direction | Right |
