Product Specifications
| Manufacturer Part Number | ESB94012030 |
| Diameter (Inch) | 1/21" |
| Diameter (Decimal Inch) | 0.0472" |
| Diameter (mm) | 1.20mm |
| Shank Diameter (Inch) | 3/19" |
| Shank Diameter (Decimal Inch) | 0.1575" |
| Shank Diameter (mm) | 4.00mm |
| Length of Cut (Inch) | 3/95" |
| Length of Cut (Decimal Inch) | 0.0315" |
| Length of Cut (mm) | 0.80mm |
| LBS (Inch) | 2/17" |
| LBS (Decimal Inch) | 0.1181" |
| LBS (mm) | 3.00mm |
| Overall Length (Inch) | 1-31/32" |
| Overall Length (Decimal Inch) | 1.9685" |
| Overall Length (mm) | 50.00mm |
| Ball Nose Radius (Inch) | 3/127" |
| Ball Nose Radius (Decimal Inch) | 0.0236" |
| Ball Nose Radius (mm) | 0.60mm |
| Shank Style | Plain |
| Number of Flute | 2 |
| Helix Angle (Degree) | 30 Degree |
| Material | CBN |

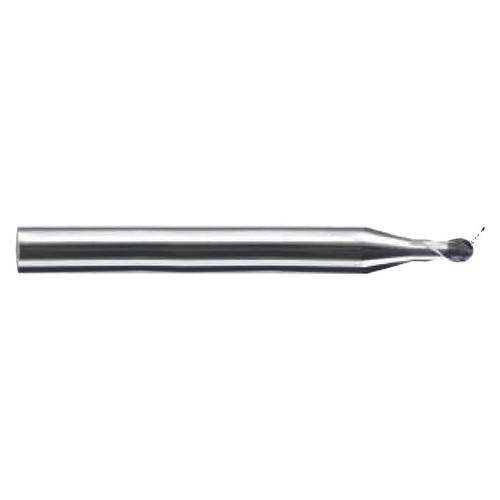

| Product Type | Ball Nose End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
1/21"
Mill Diameter (Decimal Inch):
0.0472"
Mill Diameter (mm):
1.20mm
Number of Flutes:
2
Length of Cut (Inch):
3/95"
Length of Cut (Decimal Inch):
0.0315"
Length of Cut (mm):
0.80mm
Material:
CBN
Overall Length (Inch):
1-31/32"
Overall Length (Decimal Inch):
1.9685"
Overall Length (mm):
50.00mm
Shank Diameter (Inch):
3/19"
Shank Diameter (Decimal Inch):
0.1575"
Shank Diameter (mm):
4.00mm
Cutting Direction:
Right Hand
Helix Angle (Degree):
30 Degree
