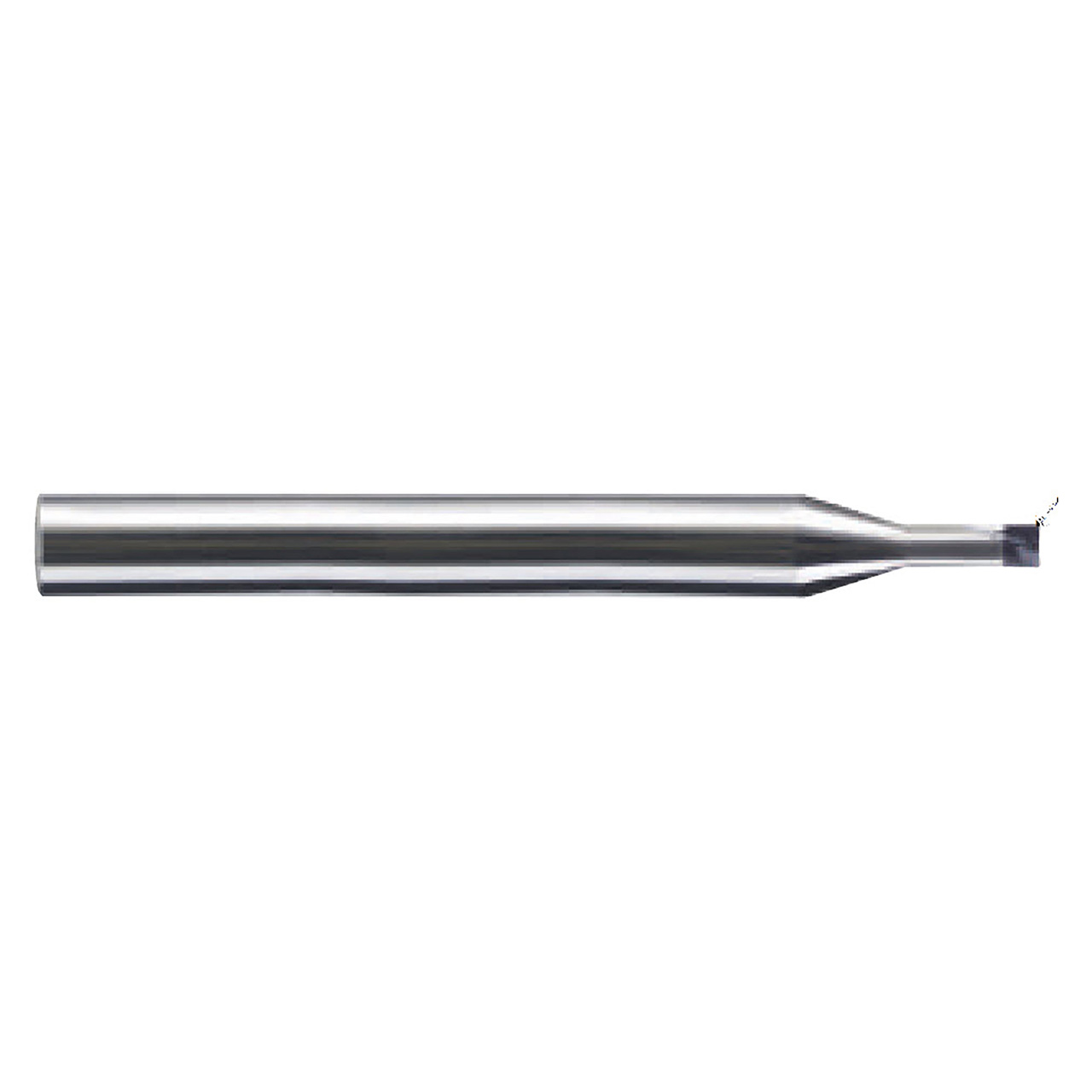

Product Specifications
| Manufacturer Part Number | ESD02010105 |
| Diameter (Inch) | 3/76" |
| Diameter (Decimal Inch) | 0.0394" |
| Diameter (mm) | 1.00mm |
| Shank Diameter (Inch) | 3/19" |
| Shank Diameter (Decimal Inch) | 0.1575" |
| Shank Diameter (mm) | 4.00mm |
| Length of Cut (Inch) | 1/36" |
| Length of Cut (Decimal Inch) | 0.0276" |
| Length of Cut (mm) | 0.70mm |
| LBS (Inch) | 12/61" |
| LBS (Decimal Inch) | 0.1969" |
| LBS (mm) | 5.00mm |
| Overall Length (Inch) | 1-31/32" |
| Overall Length (Decimal Inch) | 1.9685" |
| Overall Length (mm) | 50.00mm |
| Corner Radius (Inch) | 1/254" |
| Corner Radius (Decimal Inch) | 0.0039" |
| Corner Radius (mm) | 0.10mm |
| Shank Style | Plain |
| Number of Flute | 2 |
| Material | CBN |
| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
3/76"
Mill Diameter (Decimal Inch):
0.0394"
Mill Diameter (mm):
1.00mm
Number of Flutes:
2
Length of Cut (Inch):
1/36"
Length of Cut (Decimal Inch):
0.0276"
Length of Cut (mm):
0.70mm
Material:
CBN
Overall Length (Inch):
1-31/32"
Overall Length (Decimal Inch):
1.9685"
Overall Length (mm):
50.00mm
Shank Diameter (Inch):
3/19"
Shank Diameter (Decimal Inch):
0.1575"
Shank Diameter (mm):
4.00mm
Cutting Direction:
Right Hand
Corner Radius (Inch):
1/254"
Corner Radius (Decimal Inch):
0.0039"
Corner Radius (mm):
0.10mm
