Product Specifications
| EDP Number | F5523 |
| Size & Pitch | 7/16-14 |
| Diameter (Decimal Inch) | 0.4375" |
| Diameter (mm) | 11.11mm |
| Overall Length (Decimal Inch) | 3.1600" |
| Length/Diameter | 2.5 x D |
| Coolant Through | No |
| Overall Length (mm) | 80.26mm |
| Thread Length (Decimal Inch) | 0.4700" |
| Thread Length (mm) | 11.99mm |
| Square Length (Decimal Inch) | 0.4100" |
| Square Length (mm) | 10.41mm |
| Shank Diameter (Decimal Inch) | 0.3230" |
| Shank Diameter (mm) | 8.20mm |
| Square Size (Decimal Inch) | 0.2420" |
| Square Size (mm) | 6.15mm |
| Neck Diameter (mm) | 7.90mm |
| Drill Size (Decimal Inch) | 0.3920" |
| Drill Size (mm) | 9.96mm |
| Useable Length (mm) | 46.99mm |
| Useable Length (Decimal Inch) | 1.8500" |
| Connection (Decimal Inch) | 0.323 x 0.242" |
| Connection (mm) | 8.2 x 6.15mm |
| Series | F5 |
| Chamfer Type | Bottoming |
| Neck Diameter (Decimal Inch) | 0.3110" |
| Chamfer Length | 1.5P-2P |
| Thread Series | UNF |
| Pitch Limit | H3 |
| Blank Standard | 302A |
| Helix Angle (Degree) | 50 Degree |
| Finish | Oxide |
| Shank Type | Square |
| Trade Name | YG Tap GP |
| Tap Type | SPFL |
| Number of Flute | 3 |
| Material | HSS-V |

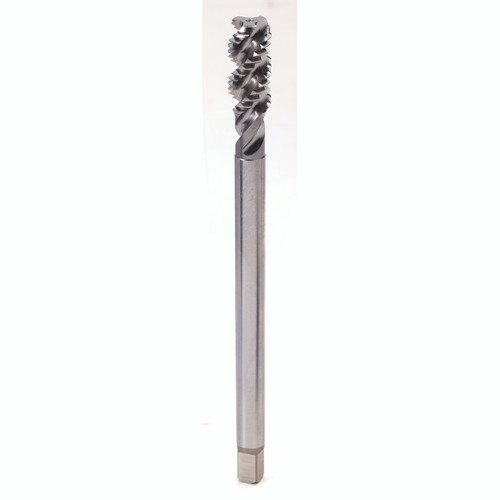

| Product Type | Spiral Flute Bottom Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Number of Flutes:
3
Chamfer:
1.5P-2P
Material:
HSS-V
Finish/Coating:
Oxide
Through Coolant:
No
interval quantity:
1
