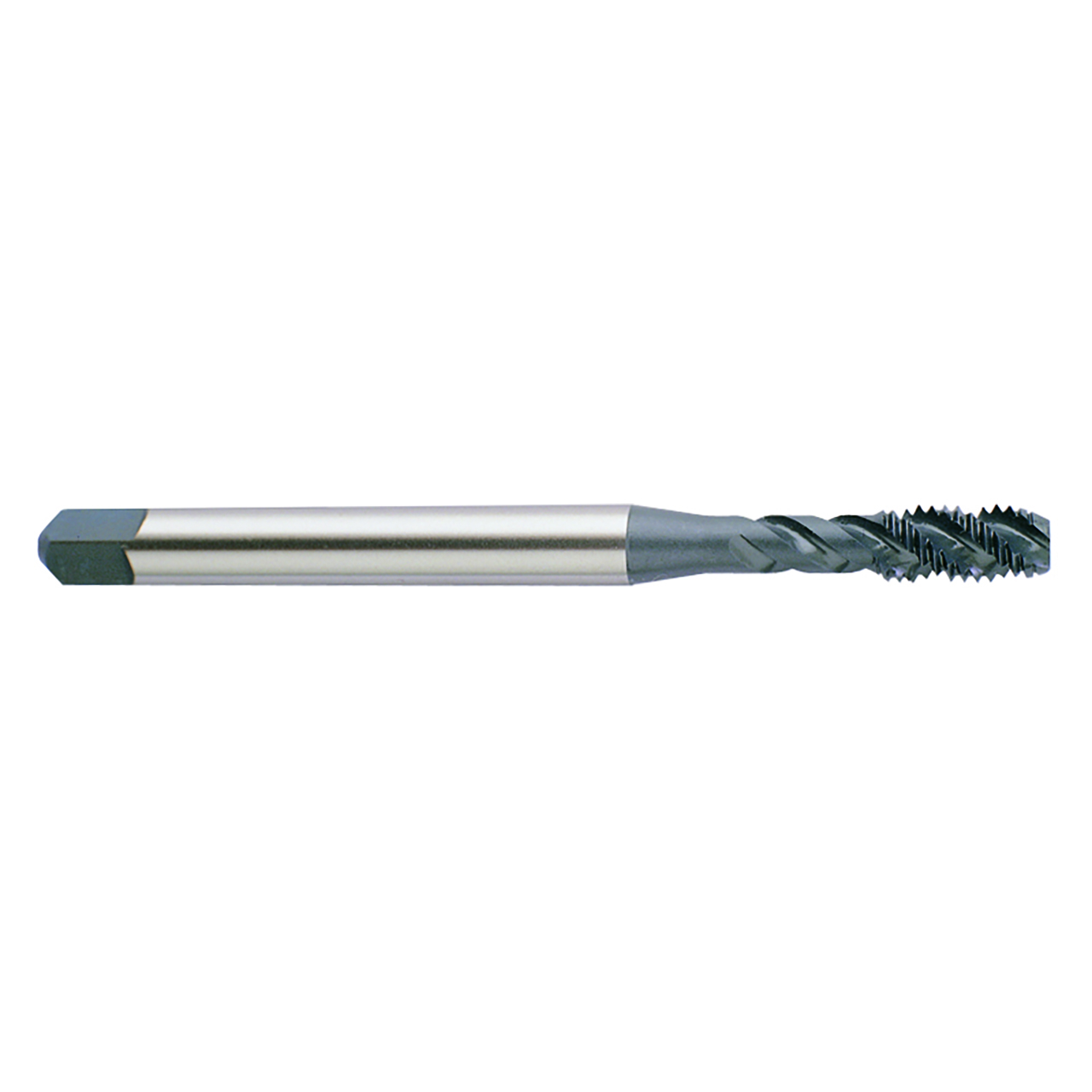

Product Specifications
| EDP Number | G0283 |
| Size & Pitch | #8-32 |
| Diameter (Decimal Inch) | 0.1640" |
| Diameter (mm) | 4.17mm |
| Overall Length (Decimal Inch) | 2.4800" |
| Length/Diameter | 2.5 x D |
| Coolant Through | No |
| Overall Length (mm) | 62.99mm |
| Thread Length (Decimal Inch) | 0.2800" |
| Thread Length (mm) | 7.01mm |
| Square Length (Decimal Inch) | 0.2500" |
| Square Length (mm) | 6.35mm |
| Shank Diameter (Decimal Inch) | 0.1680" |
| Shank Diameter (mm) | 4.27mm |
| Square Size (Decimal Inch) | 0.1310" |
| Square Size (mm) | 3.33mm |
| Neck Diameter (mm) | 3.05mm |
| Drill Size (Decimal Inch) | 0.1356" |
| Drill Size (mm) | 3.44mm |
| Useable Length (mm) | 19.10mm |
| Useable Length (Decimal Inch) | 0.7520" |
| Connection (Decimal Inch) | 0.168 x 0.131" |
| Connection (mm) | 4.27 x 3.33mm |
| Series | G0 |
| Chamfer Type | Modified Bottoming |
| Neck Diameter (Decimal Inch) | 0.1200" |
| Chamfer Length | 2P-3P |
| Thread Series | UNC |
| Pitch Limit | H3 |
| Blank Standard | DIN/ANSI |
| Helix Angle (Degree) | 45 Degree |
| Finish | Bright |
| Shank Type | Square |
| Trade Name | YG Tap GP |
| Tap Type | SPFL |
| Number of Flute | 3 |
| Material | HSS-V |
| Product Type | Spiral Flute Bottom Tap |
