Product Specifications
| EDP Number | G1202 |
| Size & Pitch | #5-40 |
| Diameter (Decimal Inch) | 0.1250" |
| Diameter (mm) | 3.18mm |
| Overall Length (Decimal Inch) | 2.2050" |
| Length/Diameter | 2.5 x D |
| Coolant Through | No |
| Overall Length (mm) | 56.01mm |
| Thread Length (Decimal Inch) | 0.2400" |
| Thread Length (mm) | 5.99mm |
| Square Length (Decimal Inch) | 0.1900" |
| Square Length (mm) | 4.83mm |
| Shank Diameter (Decimal Inch) | 0.1410" |
| Shank Diameter (mm) | 3.58mm |
| Square Size (Decimal Inch) | 0.1100" |
| Square Size (mm) | 2.79mm |
| Neck Diameter (mm) | 2.29mm |
| Drill Size (Decimal Inch) | 0.1023" |
| Drill Size (mm) | 2.60mm |
| Useable Length (mm) | 15.90mm |
| Useable Length (Decimal Inch) | 0.6260" |
| Connection (Decimal Inch) | 0.141 x 0.11" |
| Connection (mm) | 3.58 x 2.79mm |
| Series | G1 |
| Chamfer Type | Modified Bottoming |
| Neck Diameter (Decimal Inch) | 0.0900" |
| Chamfer Length | 2P-3P |
| Thread Series | UNC |
| Pitch Limit | H2 |
| Blank Standard | DIN/ANSI |
| Helix Angle (Degree) | 45 Degree |
| Finish | TiN |
| Shank Type | Square |
| Trade Name | YG Tap GP |
| Tap Type | SPFL |
| Number of Flute | 3 |
| Material | HSS-V |

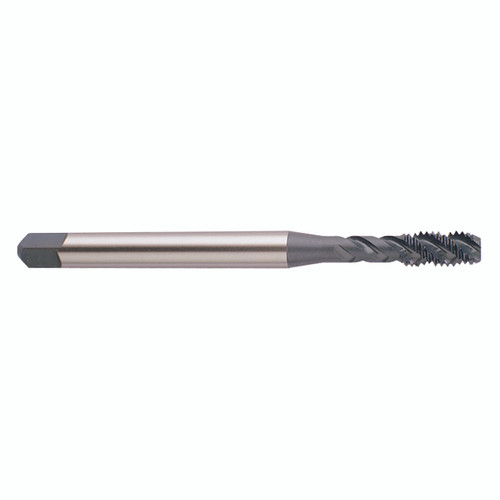

| Product Type | Spiral Flute Bottom Tap |
