| Manufacturer Part Number | G2243 |
| Size & Pitch | #6-32 |
| Diameter (Decimal Inch) | 0.1380" |
| Diameter (mm) | 3.51mm |
| Overall Length (Decimal Inch) | 2.2050" |
| Length/Diameter | 2.5 x D |
| Coolant Through | No |
| Overall Length (mm) | 56.01mm |
| Thread Length (Decimal Inch) | 0.2800" |
| Thread Length (mm) | 7.01mm |
| Square Length (Decimal Inch) | 0.1900" |
| Square Length (mm) | 4.83mm |
| Shank Diameter (Decimal Inch) | 0.1410" |
| Shank Diameter (mm) | 3.58mm |
| Square Size (Decimal Inch) | 0.1100" |
| Square Size (mm) | 2.79mm |
| Neck Diameter (mm) | 2.39mm |
| Drill Size (Decimal Inch) | 0.1096" |
| Drill Size (mm) | 2.78mm |
| Useable Length (mm) | 17.50mm |
| Useable Length (Decimal Inch) | 0.6890" |
| Connection (Decimal Inch) | 0.141 x 0.11" |
| Connection (mm) | 3.58 x 2.79mm |
| Series | G2 |
| Chamfer Type | Modified Bottoming |
| Neck Diameter (Decimal Inch) | 0.0940" |
| Chamfer Length | 2P-3P |
| Thread Series | UNC |
| Pitch Limit | H3 |
| Blank Standard | DIN/ANSI |
| Helix Angle (Degree) | 45 Degree |
| Finish | Hardslick |
| Shank Type | Square |
| Trade Name | YG Tap GP |
| Tap Type | SPFL |
| Number of Flute | 3 |
| Material | HSS-V |

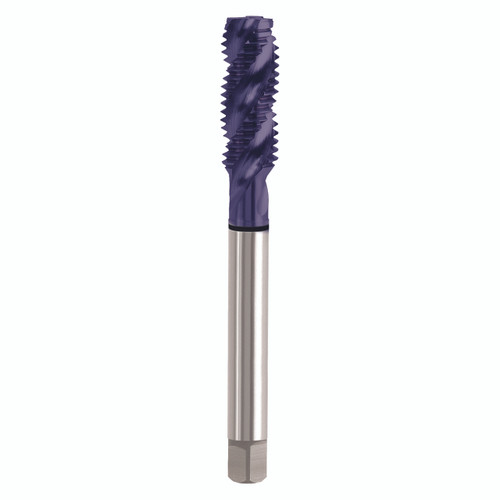

| Product Type | Spiral Flute Bottom Tap |
