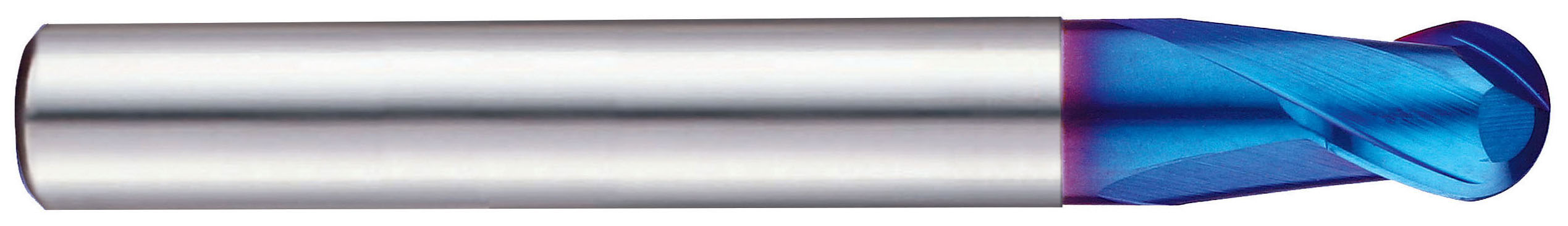

YG1 G8A28901 | 23/73" Diameter x 23/73" Shank x 2 25/69" OAL x 28/79" LOC 2 Flute Blue Coated Carbide Ball Nose End Mill

$84.24
Brand:
YG1
Mill Diameter (Inch):
23/73"
Mill Diameter (Decimal Inch):
0.3150"
Mill Diameter (mm):
8.00mm
Number of Flutes:
2
Length of Cut (Inch):
28/79"
Length of Cut (Decimal Inch):
0.3543"
Length of Cut (mm):
9.00mm
Material:
Carbide
Shank Type:
Plain
Overall Length (Inch):
2 25/69"
Overall Length (Decimal Inch):
2.3622"
Overall Length (mm):
60.00mm
Shank Diameter (Inch):
23/73"
Shank Diameter (Decimal Inch):
0.3150"
Shank Diameter (mm):
8.00mm
Finish/Coating:
Blue
Cutting Direction:
Right
Helix Angle (Degree):
30 Degree
Center Cutting (yes/no):
Yes
Application:
P,H
SKU:
25052739
Weight:
1.23 LBS
Shipping:
Free Shipping

Product Specifications
# Manufacturer NumberG8A28901
Diameter (Decimal Inch)0.3150"
Diameter (Inch)23/73"
Diameter (mm)8.00mm
Shank Diameter (Decimal Inch)0.3150"
Shank Diameter (Inch)23/73"
Shank Diameter (mm)8.00mm
Length of Cut (Decimal Inch)0.3543"
Length of Cut (Inch)28/79"
Length of Cut (mm)9.00mm
Overall Length (Decimal Inch)2.3622"
Overall-Length-(Inch)2-25/69"
Overall Length (mm)60.00mm
LBS (Decimal Inch)0.5906"
LBS-(Inch)13/22"
LBS (mm)15.00mm
Ball Nose Radius (Decimal Inch)0.1575"
Ball Nose Radius (Inch)3/19"
Ball Nose Radius (mm)4.00mm
Neck (Decimal Inch)0.3031"
Neck (Inch)10/33"
Neck (mm)7.70mm
Helix Angle (Degree)30 Degree
Number of Flute2
CoatingBlue
MaterialCarbide
Cut TypeCenter Cutting
Cutting DirectionRight
Shank StylePlain
Product TypeBall Nose End Mill
