| Manufacturer Part Number | G8A47908 |
| Diameter (Decimal Inch) | 0.3937" |
| Diameter (mm) | 10.00mm |
| Shank Diameter (Decimal Inch) | 0.3937" |
| Shank Diameter (mm) | 10.00mm |
| Length of Cut (Decimal Inch) | 0.4331" |
| Length of Cut (mm) | 11.00mm |
| Overall Length (Decimal Inch) | 2.7559" |
| Overall Length (mm) | 70.00mm |
| Corner Radius (Decimal Inch) | 0.0591" |
| Corner Radius (mm) | 1.50mm |
| LBS (Decimal Inch) | 1.2598" |
| LBS (mm) | 32.00mm |
| Neck (Decimal Inch) | 0.3819" |
| Neck (mm) | 9.70mm |
| Helix Angle (Degree) | 4 Degree |
| Number of Flute | 4 |
| Coating | Blue |
| Material | Carbide |
| Cut Type | Center Cutting |
| Cutting Direction | Right |
| Shank Style | Plain |

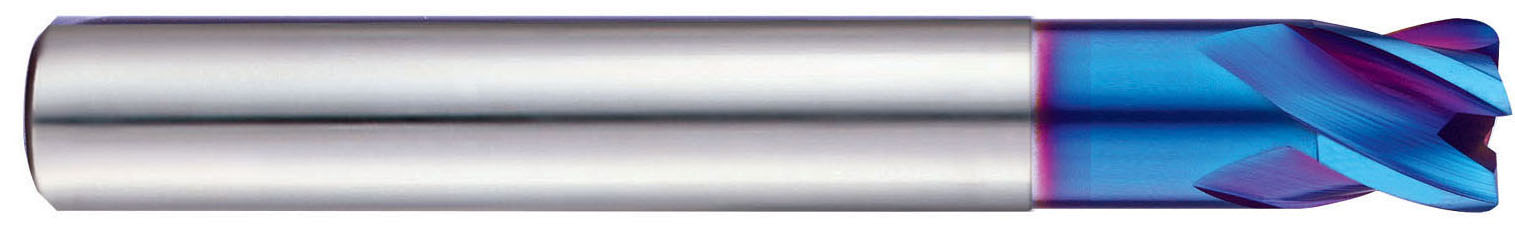

| Product Type | Corner Radius End Mill |
