Product Specifications
| Manufacturer Part Number | G9I01022N |
| Mill Diameter (Inch) | 11/32" |
| Mill Diameter (Decimal Inch) | 0.343" |
| Mill Diameter (mm) | 8.73mm |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (Decimal Inch) | 0.375" |
| Shank Diameter (mm) | 9.53mm |
| Length of Cut (Inch) | 9/16" |
| Length of Cut (Decimal Inch) | 0.562" |
| Length of Cut (mm) | 14.29mm |
| Overall Length (Inch) | 2-1/2" |
| Overall Length (Decimal Inch) | 2.500" |
| Overall Length (mm) | 63.50mm |
| Ball Nose Radius (Inch) | 11/64" |
| Ball Nose Radius (Decimal Inch) | 0.171" |
| Ball Nose Radius (mm) | 4.37mm |
| Number of Flutes | 4 |
| Helix Angle (Degree) | 30 Degree |
| Coating | X-Coated |
| Material | Carbide |

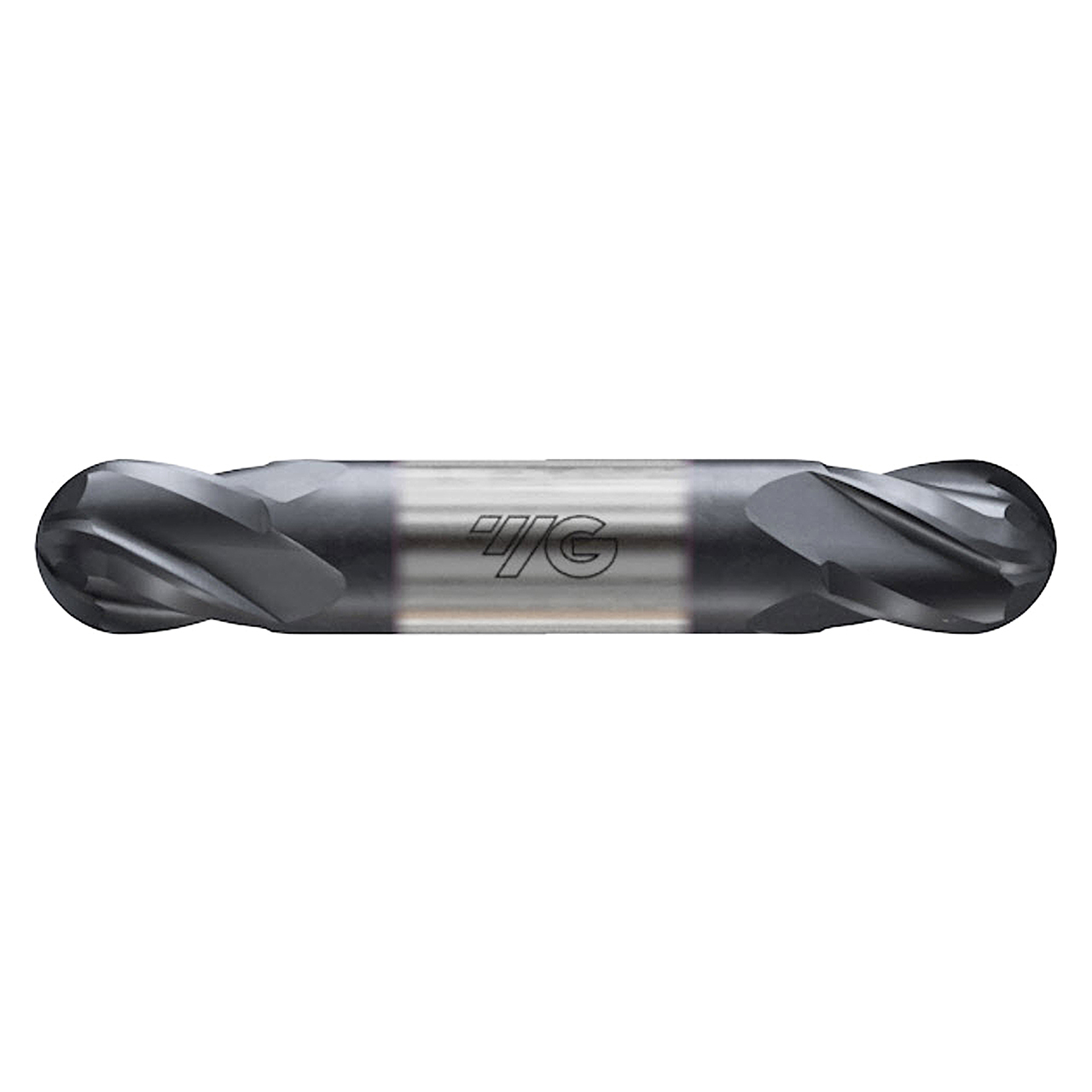

| Product Type | Double Ended Ball End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Cutting Diameter (Inch):
11/32"
Cutting Diameter (Decimal Inch):
0.3430"
Cutting Diameter (mm):
8.73mm
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Length of Cut (Inch):
9/16"
Length of Cut (Decimal Inch):
0.5620"
Length of Cut (mm):
14.29mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Number of Flutes:
4
Helix Angle:
30 Degree
Finish/Coating:
X-Coated
Material:
Carbide
interval quantity:
1
