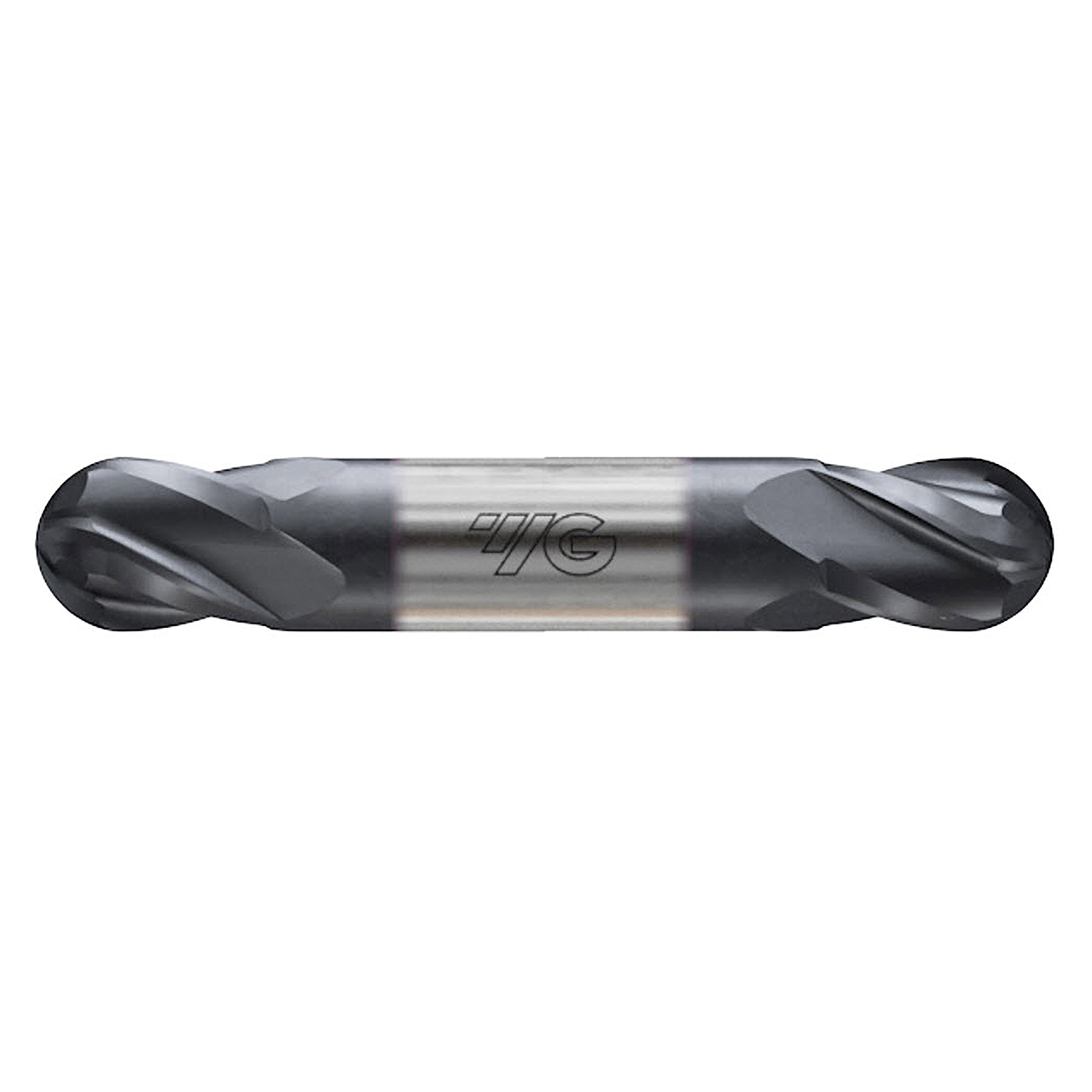

| Manufacturer Part Number | G9I01032N |
| Mill Diameter (Inch) | 1/2" |
| Mill Diameter (Decimal Inch) | 0.5000" |
| Mill Diameter (mm) | 12.70mm |
| Shank Diameter (Inch) | 1/2" |
| Shank Diameter (Decimal Inch) | 0.5000" |
| Shank Diameter (mm) | 12.70mm |
| Length of Cut (Inch) | 5/8" |
| Length of Cut (Decimal Inch) | 0.6250" |
| Length of Cut (mm) | 15.88mm |
| Overall Length (Inch) | 2-1/2" |
| Overall Length (Decimal Inch) | 2.5000" |
| Overall Length (mm) | 63.50mm |
| Ball Nose (Decimal Inch) | 0.2500" |
| Ball Nose (Inch) | 1/4" |
| Ball Nose (mm) | 6.35mm |
| Helix | 30 Degree |
| Series | G9I01 |
| Coated | X-Coating |
| Material | Carbide |
| Type | Ball Nose Double End |
| Corner Type | Ball Nose |
