Product Specifications

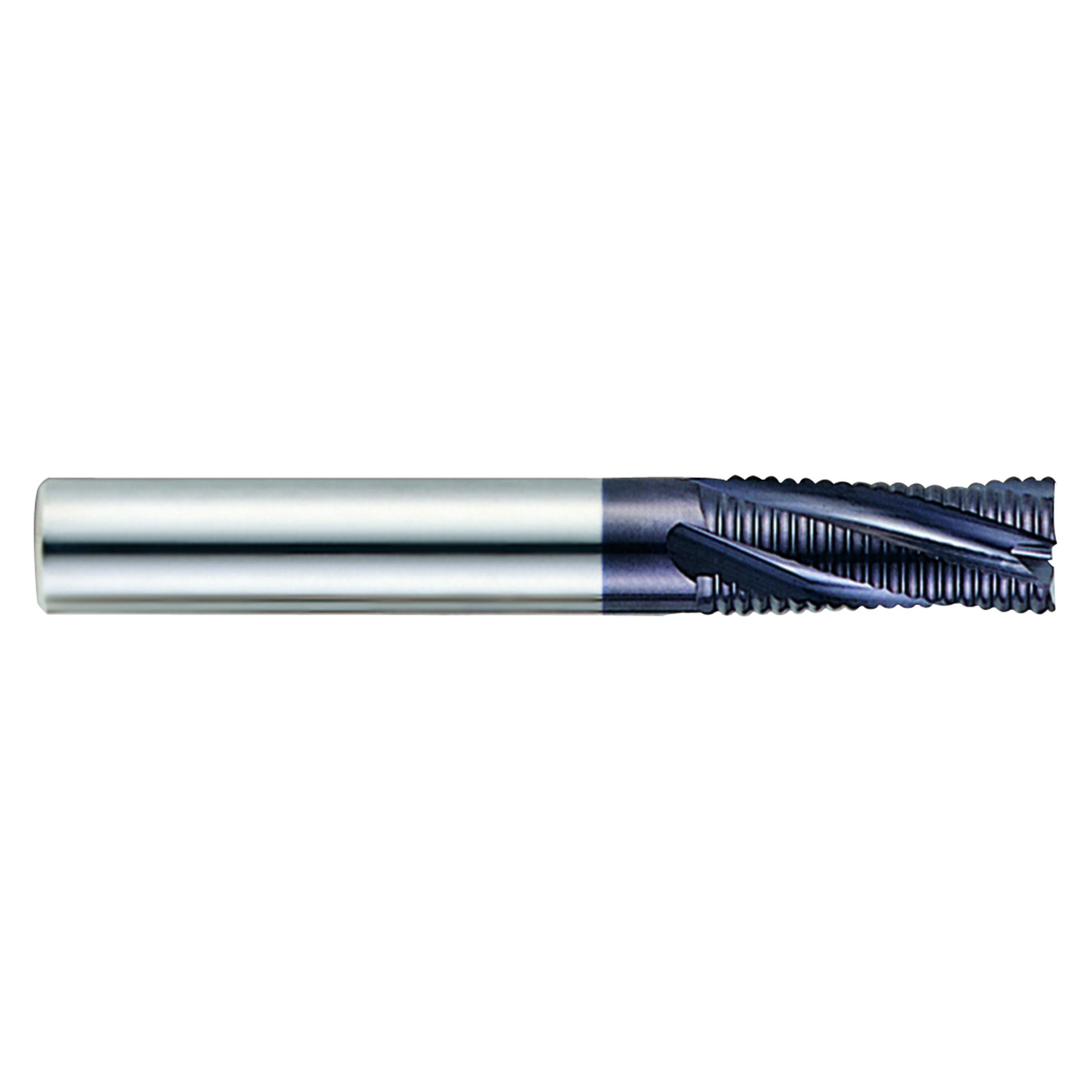

| Manufacturer Part Number | GM156064 |
| Mill Diameter (Inch) | 1" |
| Mill Diameter (Decimal Inch) | 1.000" |
| Mill Diameter (mm) | 25.40mm |
| Shank Diameter (Inch) | 1" |
| Shank Diameter (Decimal Inch) | 1.000" |
| Shank Diameter (mm) | 25.40mm |
| Length of Cut (Decimal Inch) | 1.750" |
| Length of Cut (mm) | 44.45mm |
| Overall Length (Inch) | 4" |
| Overall Length (Decimal Inch) | 4.000" |
| Overall Length (mm) | 101.60mm |
| Corner Chamfer (Decimal Inch) | 0.0009" |
| Corner Chamfer (mm) | 0.02mm |
| Shank Type | PLAIN |
| Material | Carbide |
| Coating | Y-Coating |
| Helix Angle (Degree) | 20 Degree |
| Number of Flutes | 5 |
| Series | GM156 |
| Application | P |
| Product Type | Square End Mill |
