Product Specifications
| Manufacturer Part Number | GM210008 |
| Mill Diameter (Inch) | 1/8" |
| Mill Diameter (Decimal Inch) | 0.1250" |
| Mill Diameter (mm) | 3.18mm |
| Shank Diameter (Inch) | 1/8" |
| Shank Diameter (Decimal Inch) | 0.1250" |
| Shank Diameter (mm) | 3.18mm |
| Length of Cut (Inch) | 5/16" |
| Length of Cut (Decimal Inch) | 0.3125" |
| Length of Cut (mm) | 7.94mm |
| Overall Length (Inch) | 2-3/8" |
| Overall Length (Decimal Inch) | 2.3750" |
| Overall Length (mm) | 60.33mm |
| Ball nose Radius (Inch) | 1/16" |
| Ball Nose Radius (Decimal Inch) | 0.0625" |
| Ball Nose Radius (mm) | 1.59mm |
| Helix (Degree) | 30 Degree |
| Number of Flute | 4 |
| Shank Type | Plain |
| Material | Carbide |

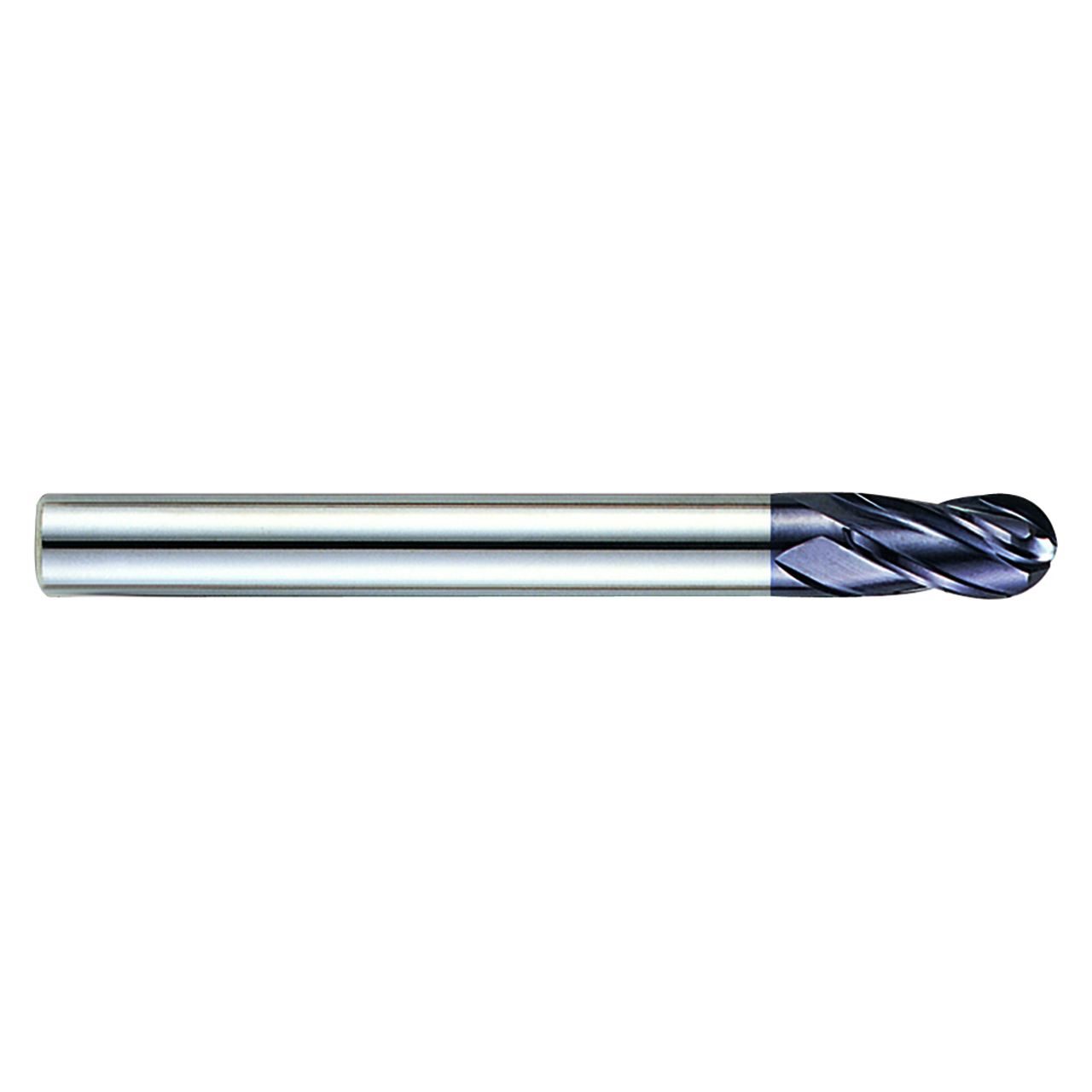

| Product Type | Ball Nose End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
1/8"
Mill Diameter (Decimal Inch):
0.1250"
Mill Diameter (mm):
3.18mm
Number of Flutes:
4
Length of Cut (Inch):
5/16"
Length of Cut (Decimal Inch):
0.3125"
Length of Cut (mm):
7.94mm
Material:
Carbide
Overall Length (Inch):
2-3/8"
Overall Length (Decimal Inch):
2.3750"
Overall Length (mm):
60.33mm
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
