| Manufacturer Part Number | GM649903 |
| Mill Diameter (Inch) | 3/16" |
| Mill Diameter (Decimal Inch) | 0.188" |
| Mill Diameter (mm) | 4.76mm |
| Corner Radius (Decimal Inch) | 0.020" |
| Corner Radius (mm) | 0.51mm |
| Shank Diameter (Inch) | 1/4" |
| Shank Diameter (Decimal Inch) | 0.250" |
| Shank Diameter (mm) | 6.35mm |
| Length of Cut (Decimal Inch) | 0.625" |
| Length of Cut (mm) | 15.88mm |
| Overall Length (Inch) | 2-1/2" |
| Overall Length (Decimal Inch) | 2.500" |
| Overall Length (mm) | 63.50mm |
| Shank Type | PLAIN |
| Material | Carbide |
| Coating | Y-Coating |
| Helix Angle (Degree) | 30 Degree |
| Number of Flutes | 4 |
| Series | GM649 |
| Application | P |

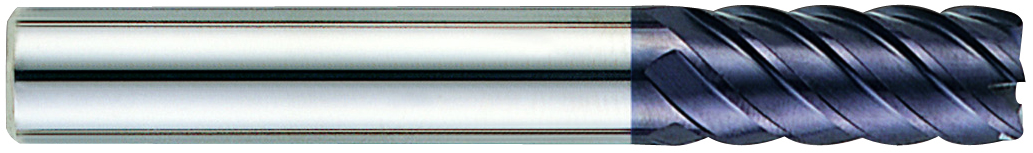

| Product Type | Corner Radius End Mill |
