Product Specifications
| Manufacturer Part Number | GM963901 |
| Mill Diameter (Inch) | 1/16" |
| Mill Diameter (Decimal Inch) | 0.0625" |
| Mill Diameter (mm) | 1.59mm |
| Shank Diameter (Inch) | 1/4" |
| Shank Diameter (Decimal Inch) | 0.2500" |
| Shank Diameter (mm) | 6.35mm |
| Length of Cut (Inch) | 5/32" |
| Length of Cut (Decimal Inch) | 0.1563" |
| Length of Cut (mm) | 3.97mm |
| Overall Length (Inch) | 3-1/8" |
| Overall Length (Decimal Inch) | 3.1250" |
| Overall Length (mm) | 79.38mm |
| Ball nose Radius (Inch) | 1/32" |
| Ball Nose Radius (Decimal Inch) | 0.0313" |
| Ball Nose Radius (mm) | 0.79mm |
| LBS (Inch) | 1-5/8" |
| LBS (Decimal Inch) | 1.6250" |
| LBS (mm) | 41.28mm |
| Neck Diameter (Inch) | 5/24" |
| Neck Diameter (Decimal Inch) | 0.208" |
| Neck Diameter (mm) | 5.28mm |
| Under Neck Parallel Length (Inch) | 15/64" |
| Under Neck Parallel Length (Decimal Inch) | 0.2344" |
| Under Neck Parallel Length (mm) | 5.95mm |
| Helix (Degree) | 30 Degree |
| Taper Neck Angle (Degree) | 3 Degree |
| Number of Flute | 2 |
| Shank Type | Plain |
| Material | Carbide |

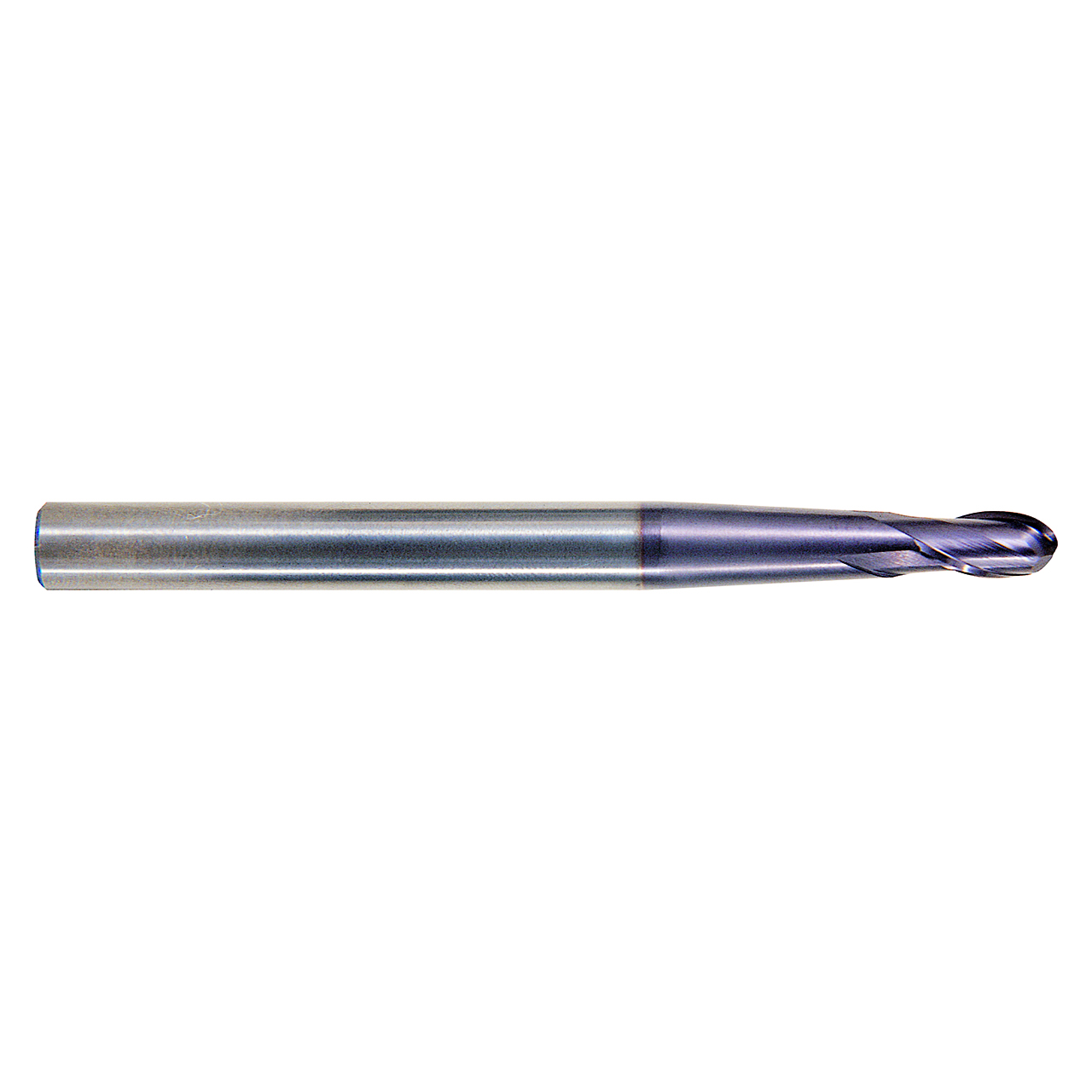

| Product Type | Ball Nose End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
1/16"
Mill Diameter (Decimal Inch):
0.0625"
Mill Diameter (mm):
1.59mm
Number of Flutes:
2
Length of Cut (Inch):
5/32"
Length of Cut (Decimal Inch):
0.1563"
Length of Cut (mm):
3.97mm
Material:
Carbide
Overall Length (Inch):
3-1/8"
Overall Length (Decimal Inch):
3.1250"
Overall Length (mm):
79.38mm
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
