| Manufacturer Part Number | GM967008 |
| Mill Diameter (Inch) | 1/16" |
| Mill Diameter (Decimal Inch) | 0.063" |
| Mill Diameter (mm) | 1.59mm |
| Ball Nose Radius (Inch) | 1/32" |
| Ball Nose Radius (Decimal Inch) | 0.031" |
| Ball Nose Radius (mm) | 0.79mm |
| Shank Diameter (Inch) | 1/8" |
| Shank Diameter (Decimal Inch) | 0.125" |
| Shank Diameter (mm) | 3.18mm |
| Length of Cut (Decimal Inch) | 0.094" |
| Length of Cut (mm) | 2.38mm |
| LBS (Inch) | 5/16" |
| LBS (Decimal Inch) | 0.313" |
| LBS (mm) | 7.94mm |
| Overall Length (Inch) | 2" |
| Overall Length (Decimal Inch) | 2.000" |
| Overall Length (mm) | 50.80mm |
| Neck Diameter (Decimal Inch) | 0.060" |
| Neck Diameter (mm) | 1.52mm |
| Shank Type | PLAIN |
| Material | Carbide |
| Coating | Y-Coating |
| Helix Angle (Degree) | 30 Degree |
| Number of Flutes | 2 |
| Series | GM967 |
| Application | P |

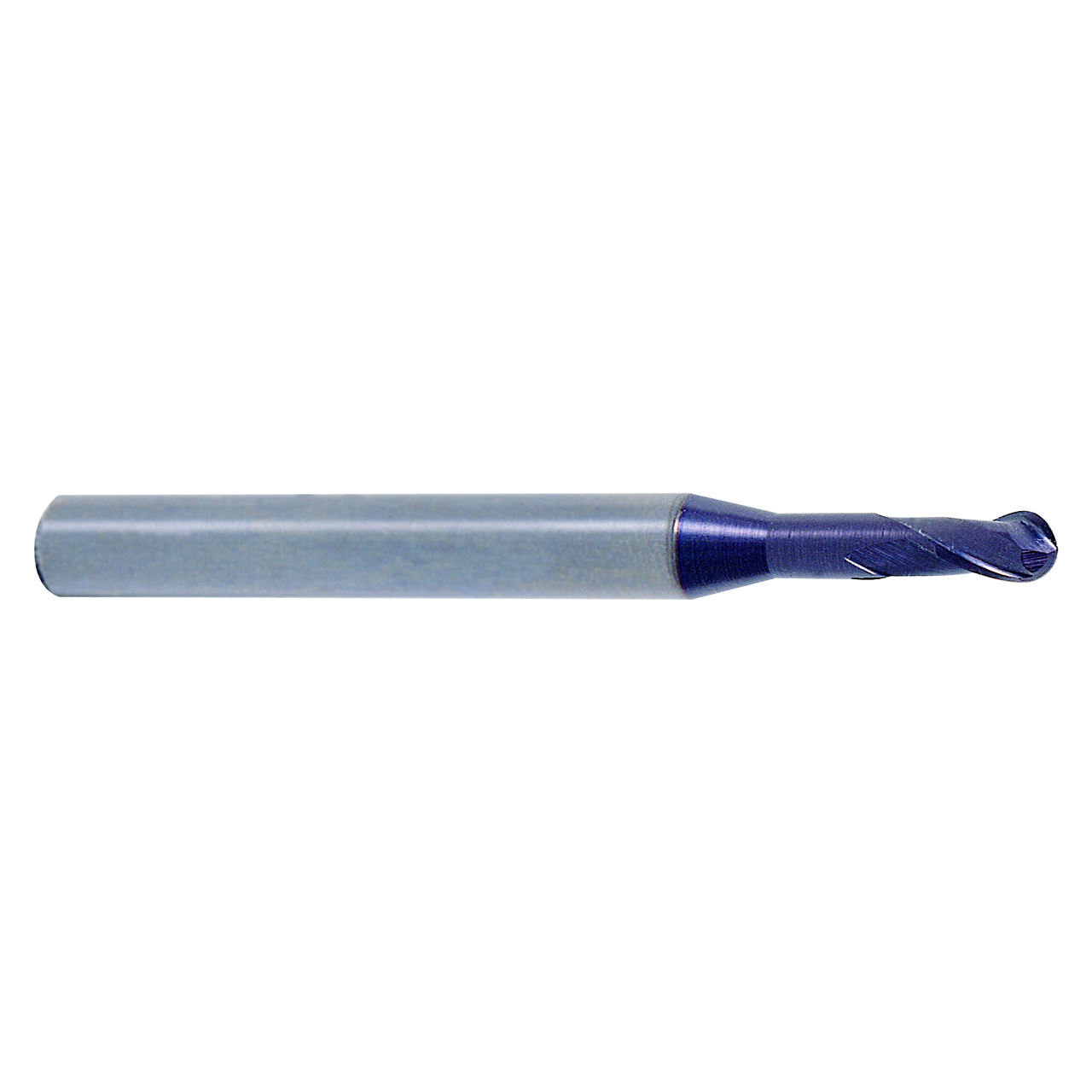

| Product Type | Ball Nose End Mill |
