Product Specifications
| EDP Number | GMF27943 |
| Diameter (Decimal Inch) | 0.5000" |
| Diameter (Inch) | 1/2" |
| Diameter (mm) | 12.70mm |
| Shank Diameter (Decimal Inch) | 0.5000" |
| Shank Diameter (Inch) | 1/2" |
| Shank Diameter (mm) | 12.70mm |
| Length of Cut (Decimal Inch) | 2.375" |
| Length of Cut (Inch) | 2 3/8" |
| Length of Cut (mm) | 60.33mm |
| Overall Length (Decimal Inch) | 4.2500" |
| Overall Length (Inch) | 4-1/4" |
| Overall Length (mm) | 107.95mm |
| Shank Style | Plain |
| Helix Angle (Degree) | 30 Degree |
| Coating | AlCrN |
| Number of Flutes | 4 |
| Cut Type | Center Cut |
| Corner Type | Square End |
| Length Type | Long Length |
| Series | GMF27 |
| Material | Carbide |

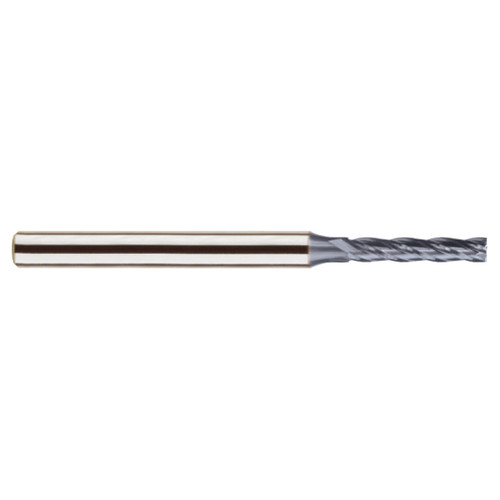

| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Number of Flutes:
4
Length of Cut (Inch):
2-3/8"
Length of Cut (Decimal Inch):
2.3750"
Length of Cut (mm):
60.33mm
Material:
Carbide
Finish/Coating:
AlCrN
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.70mm
Overall Length (Inch):
4-1/4"
Overall Length (Decimal Inch):
4.2500"
Overall Length (mm):
107.95mm
Helix Angle:
30°
