Product Specifications

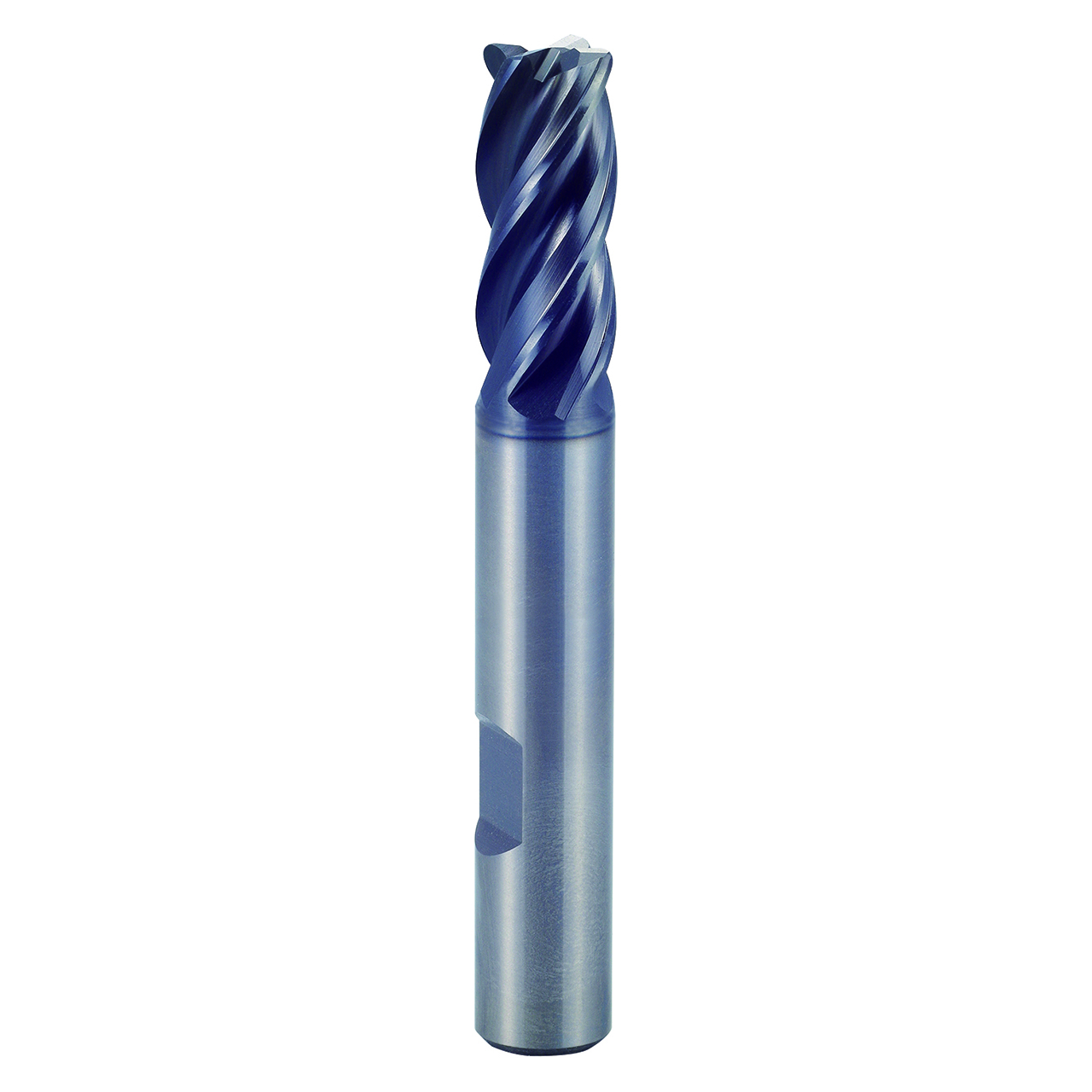

| Manufacturer Part Number | GMF55914 |
| Diameter (Inch) | 17/24" |
| Diameter (Decimal Inch) | 0.7087" |
| Diameter (mm) | 18.00mm |
| Shank Diameter (Inch) | 17/24" |
| Shank Diameter (Decimal Inch) | 0.7087" |
| Shank Diameter (mm) | 18.00mm |
| Length of Cut (Inch) | 17/18" |
| Length of Cut (Decimal Inch) | 0.9449" |
| Length of Cut (mm) | 24.00mm |
| Overall Length (Inch) | 3-4/13" |
| Overall Length (Decimal Inch) | 3.3071" |
| Overall Length (mm) | 84.00mm |
| Corner Radius (Inch) | 3/38" |
| Corner Radius (Decimal Inch) | 0.0787" |
| Corner Radius (mm) | 2.00mm |
| Number of Flutes | 4 |
| Helix Angle | Variable |
| Series | GMF55 |
| Shank Style | Flat |
| Coating | Y-Coated |
| Material | Carbide |
| Cut Type | Center |
| Cutting Direction | Right |
| Length Type | Standard Length |
| Application | P, M, K, S |
