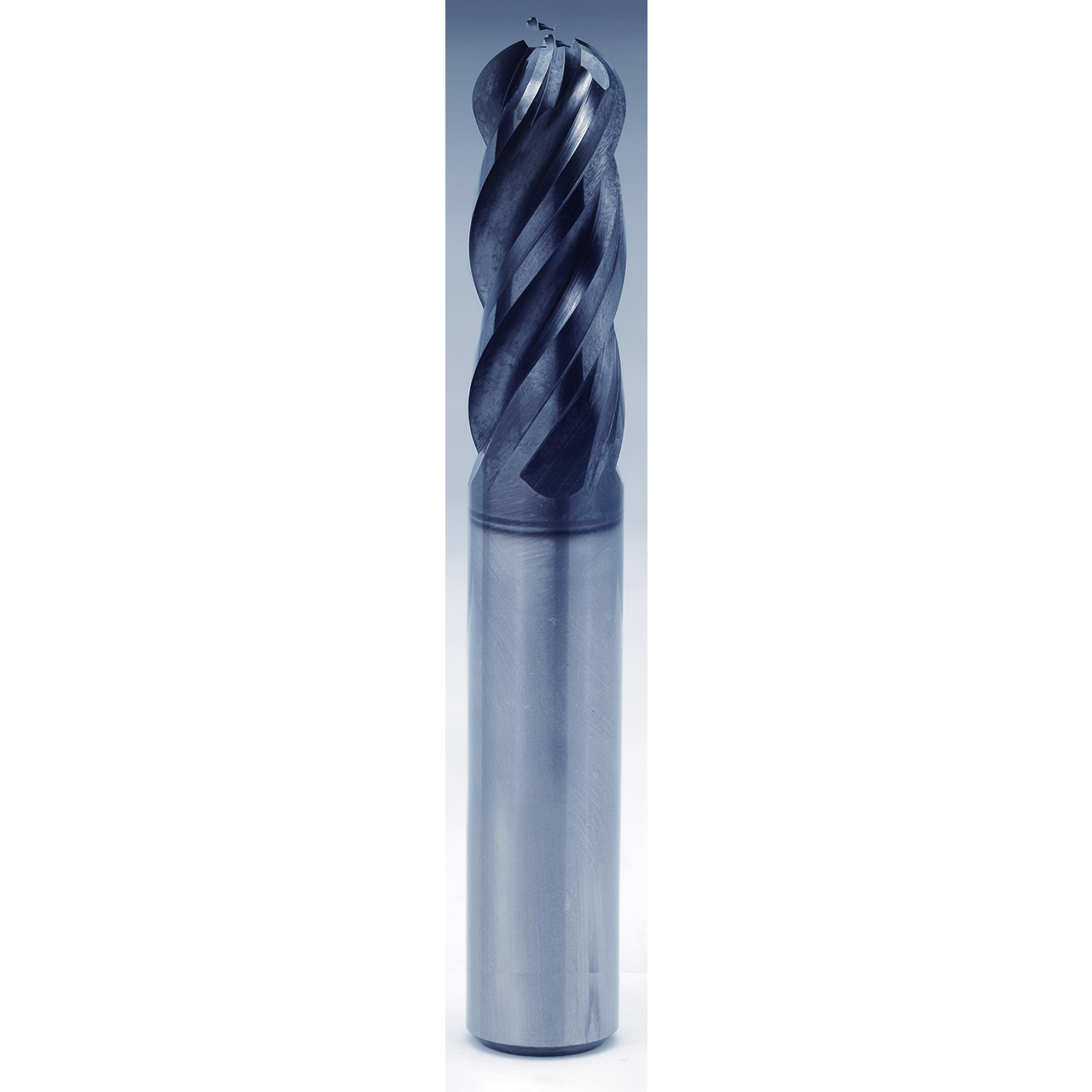

| Manufacturer Part Number | GMG55080 |
| Diameter (Inch) | 23/73" |
| Diameter (Decimal Inch) | 0.3150" |
| Diameter (mm) | 8.00mm |
| Shank Diameter (Inch) | 23/73" |
| Shank Diameter (Decimal Inch) | 0.3150" |
| Shank Diameter (mm) | 8.00mm |
| Length of Cut (Inch) | 3/4" |
| Length of Cut (Decimal Inch) | 0.7480" |
| Length of Cut (mm) | 19.00mm |
| Overall Length (Inch) | 2-12/25" |
| Overall Length (Decimal Inch) | 2.4803" |
| Overall Length (mm) | 63.00mm |
| Ball Nose Radius (Inch) | 3/19" |
| Ball Nose Radius (Decimal Inch) | 0.1575" |
| Ball Nose Radius (mm) | 4.00mm |
| Number of Flutes | 4 |
| Helix Angle | Variable |
| Series | GMG55 |
| Shank Style | Plain |
| Coating | Y-Coated |
| Material | Carbide |
| Cut Type | Center |
| Cutting Direction | Right |
| Length Type | Standard Length |
| Application | P, M, K, S |
