Product Specifications
| EDP Number | GYG67008 |
| Diameter (Decimal Inch) | 0.1250" |
| Diameter (Inch) | 1/8" |
| Diameter (mm) | 3.18mm |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (mm) | 9.53mm |
| Length of Cut (Decimal Inch) | 0.3750" |
| Length of Cut (Inch) | 3/8" |
| Length of Cut (mm) | 9.53mm |
| Overall Length (Decimal Inch) | 2.3125" |
| Overall Length (Inch) | 2-5/16" |
| Overall Length (mm) | 58.74mm |
| Ball Nose Radius (Decimal Inch) | 0.0625" |
| Ball Nose Radius (Inch) | 1/16" |
| Ball Nose Radius (mm) | 1.59mm |
| Series | GYG67 |
| No of Flutes | 4 |
| Helix Angle (Degree) | 30 Degree |
| Coating | ALCrN |
| Material | PM60 |
| Shank Style | Flat |
| Cut Type | Center Cut |
| Corner Type | Ball Nose |
| Application | P, M, K |
| Cutting Direction | Right Hand |

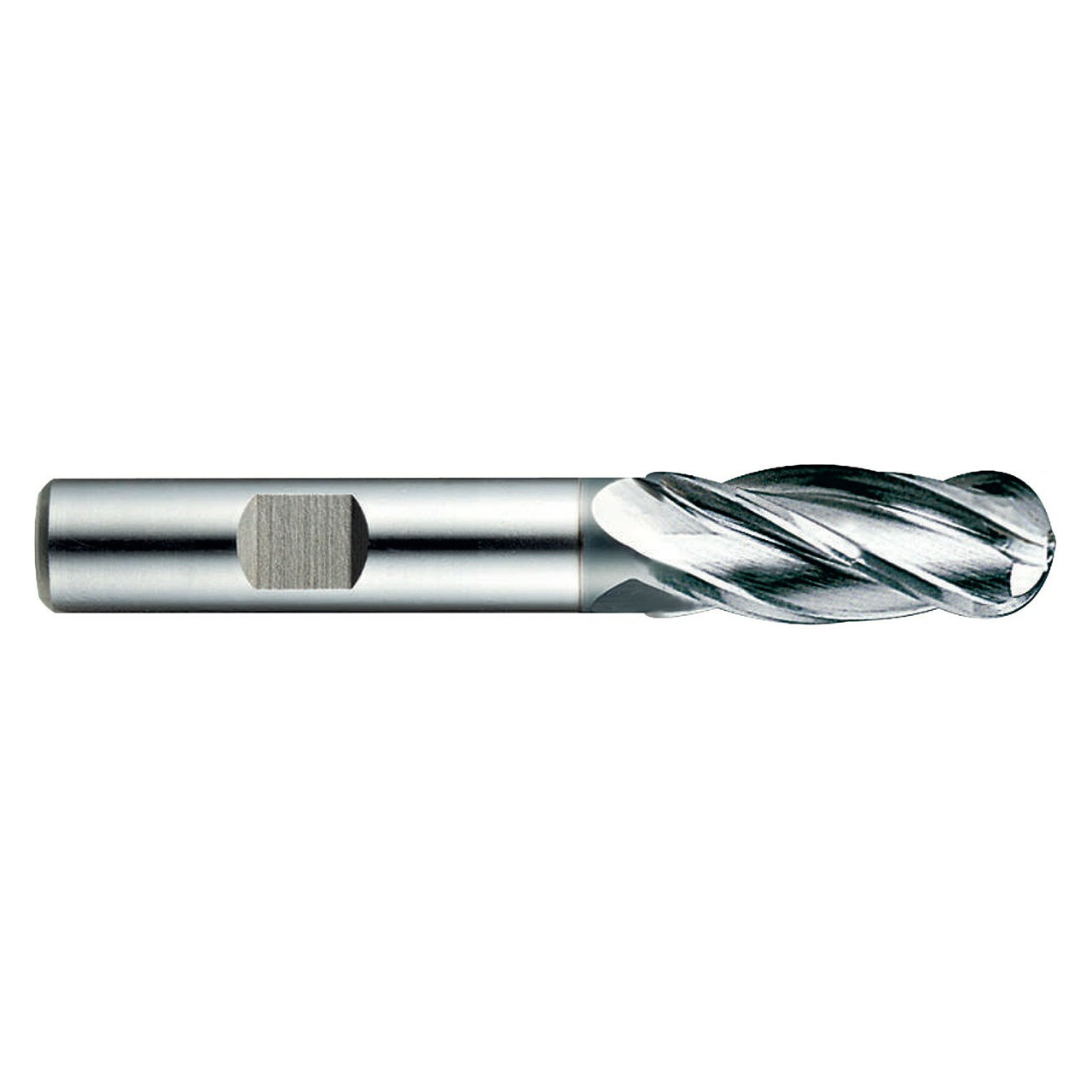

| Product Type | Ball Nose End Mill |
