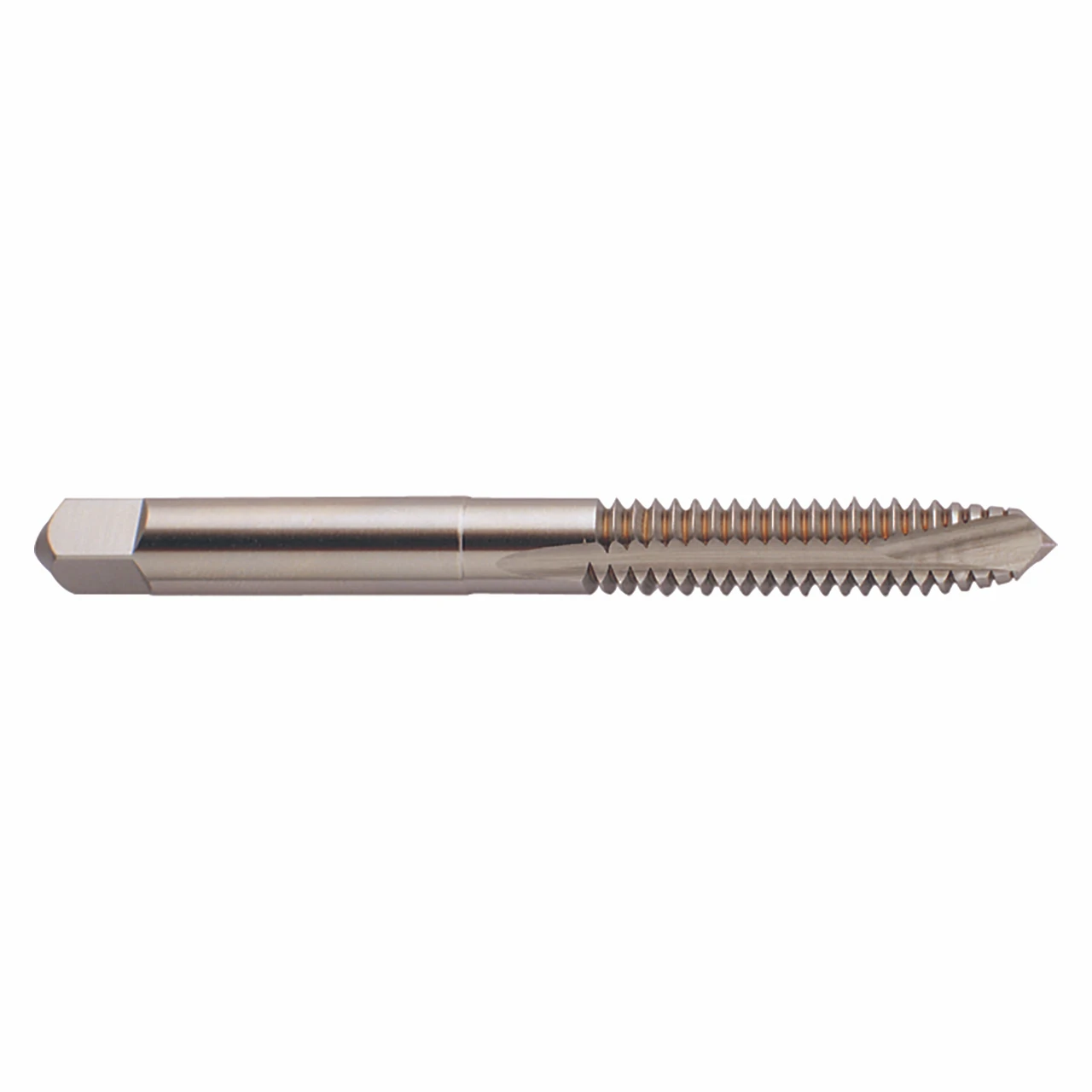

| Manufacturer Part Number | I9002 |
| Size & Pitch | #0-80 |
| Diameter (Decimal Inch) | 0.0600" |
| Diameter (mm) | 1.52mm |
| Overall Length (Decimal Inch) | 1.6300" |
| Length/Diameter | 3.0 x D |
| Coolant Through | No |
| Overall Length (mm) | 41.40mm |
| Thread Length (Decimal Inch) | 0.3100" |
| Thread Length (mm) | 7.87mm |
| Square Length (Decimal Inch) | 0.1900" |
| Square Length (mm) | 4.83mm |
| Shank Diameter (Decimal Inch) | 0.1410" |
| Shank Diameter (mm) | 3.58mm |
| Square Size (Decimal Inch) | 0.1100" |
| Square Size (mm) | 2.79mm |
| Drill Size (Decimal Inch) | 0.0486" |
| Drill Size (mm) | 1.24mm |
| Useable Length (mm) | 7.87mm |
| Useable Length (Decimal Inch) | 0.3100" |
| Connection (Decimal Inch) | 0.141 x 0.11" |
| Connection (mm) | 3.58 x 2.79mm |
| Series | I9 |
| Chamfer Type | Bottoming |
| Chamfer Length | 1.5P-2P |
| Thread Series | UNC |
| Pitch Limit | H2 |
| Blank Standard | 302 |
| Helix Angle (Degree) | 0 Degree |
| Finish | Bright |
| Shank Type | Square |
| Trade Name | YG Tap GP |
| Tap Type | SPPT |
| Number of Flute | 2 |
| Material | HSS |
| Product Type | Spiral Point Tap |
