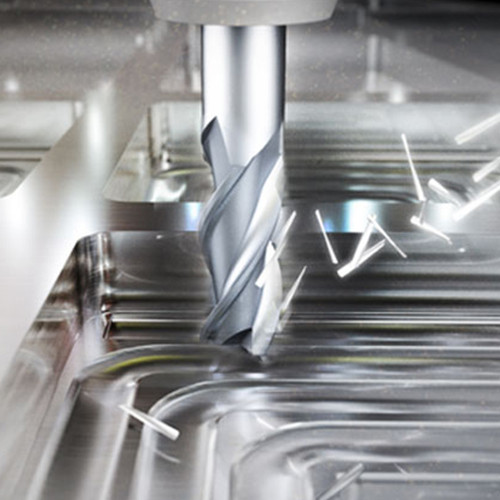

YG1 JAG96016 | 1/4" Diameter x 1/4" Shank x 3/8" LOC x 3/4" LBS x 2-1/2" OAL x 37 Degree Helix Angle 3 Flute Super DLC Coated Carbide JAG96 Square End Mill

About This Item

Features

• High performance extended length DLC coated end mills providing longer tool life
• Balanced cutting with less vibration
• Ability to run at higher speeds with less heat in aluminum
• More efficient chip evacuation
• Ability to counteract extreme radial forces

Product Specifications

Manufacturer Part Number	JAG96016
Cutting Diameter (Inch)	1/4"
Number of Flutes	3
Length of Cut (Inch)	3/8"
Shank Diameter (Inch)	1/4"
Overall Length (Inch)	2-1/2"
Tool Material	Carbide
Finish/Coating	Super DLC
Single or Double End	Single
Cutting Direction	Right
Flute Direction	Right
Center Cutting (yes/no)	Yes



Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
