Product Specifications

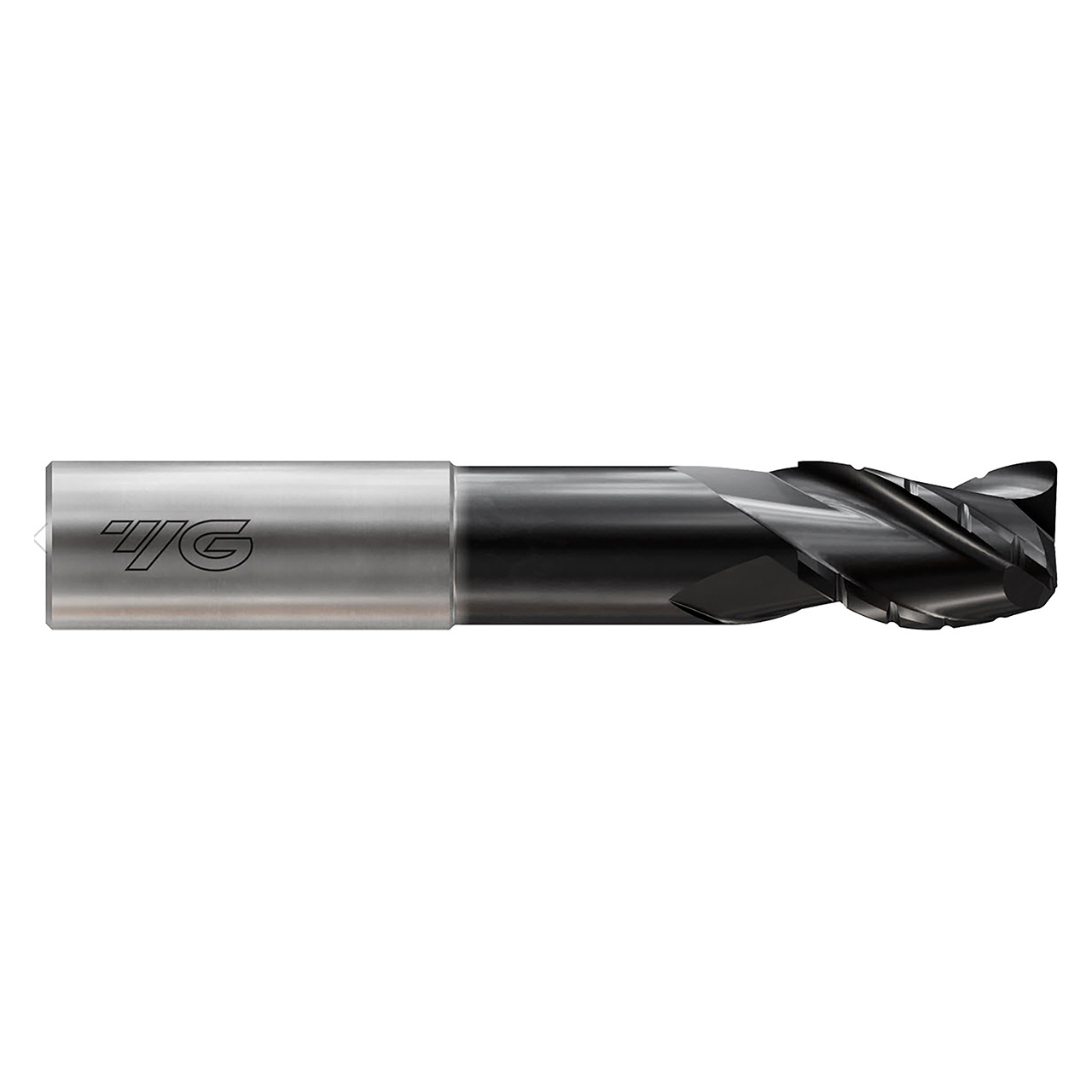

| Manufacturer Part Number | JAI39904 |
| Diameter (Inch) | 1/2" |
| Diameter (Decimal Inch) | 0.5000" |
| Diameter (mm) | 12.70mm |
| Shank Diameter (Inch) | 1/2" |
| Shank Diameter (Decimal Inch) | 0.5000" |
| Shank Diameter (mm) | 12.70mm |
| Length of Cut (Inch) | 5/8" |
| Length of Cut (Decimal Inch) | 0.6250" |
| Length of Cut (mm) | 15.88mm |
| Overall Length (Inch) | 4" |
| Overall Length (Decimal Inch) | 4.0000" |
| Overall Length (mm) | 101.60mm |
| Length Below Shank (Inch) | 2-1/4" |
| Length Below Shank (Decimal Inch) | 2.2500" |
| Length Below Shank (mm) | 57.15mm |
| Neck (Decimal Inch) | 0.4706" |
| Corner Radius (Inch) | 3/50" |
| Corner Radius (Decimal Inch) | 0.0600" |
| Corner Radius (mm) | 1.52mm |
| Number of Flutes | 3 |
| Series | JAI39 |
| Helix Angle | 37 Degree |
| Shank Style | Plain |
| Coating | Super DLC |
| Material | Carbide |
| Cut Type | Center |
| Corner Type | Corner Radius |
| Type | Corner Radius With Neck |
| Cutting Direction | Right |
| Application | N |
