| Manufacturer Part Number | K7365 |
| Size | M8 |
| Pitch (TPI) | 1.25 TPI |
| Diameter (Decimal Inch) | 0.3150" |
| Diameter (mm) | 8.00mm |
| Overall Length (Decimal Inch) | 3.5430" |
| Overall Length (mm) | 89.99mm |
| Thread Length (Decimal Inch) | 0.6690" |
| Thread Length (mm) | 16.99mm |
| Square Length (Decimal Inch) | 0.3800" |
| Square Length (mm) | 9.65mm |
| Shank Diameter (Decimal Inch) | 0.3180" |
| Shank Diameter (mm) | 8.08mm |
| Square Size (Decimal Inch) | 0.2380" |
| Square Size (mm) | 8.08mm |
| Neck Diameter (Decimal Inch) | 0.2460" |
| Neck Diameter (mm) | 6.25mm |
| Drill Size (Decimal Inch) | 0.2702" |
| Drill Size (mm) | 6.86mm |
| Useable Length (Decimal Inch) | 1.1260" |
| Useable Length (mm) | 28.60mm |
| Length/Diameter | 3.0xD |
| Number of Flutes | 3 |
| Series | K7 |
| Thread Series | M |
| Pitch Limit | D5 |
| Chamfer Length | 4P-5P |
| Blank Standard | DIN/ANSI |
| Coating | TiCN |
| Material | HSSE-V3 |
| Shank Type | Square |
| Trade Name | YG Tap Steel |
| Tap Type | Spiral Point |
| Chamfer Type | Plug |

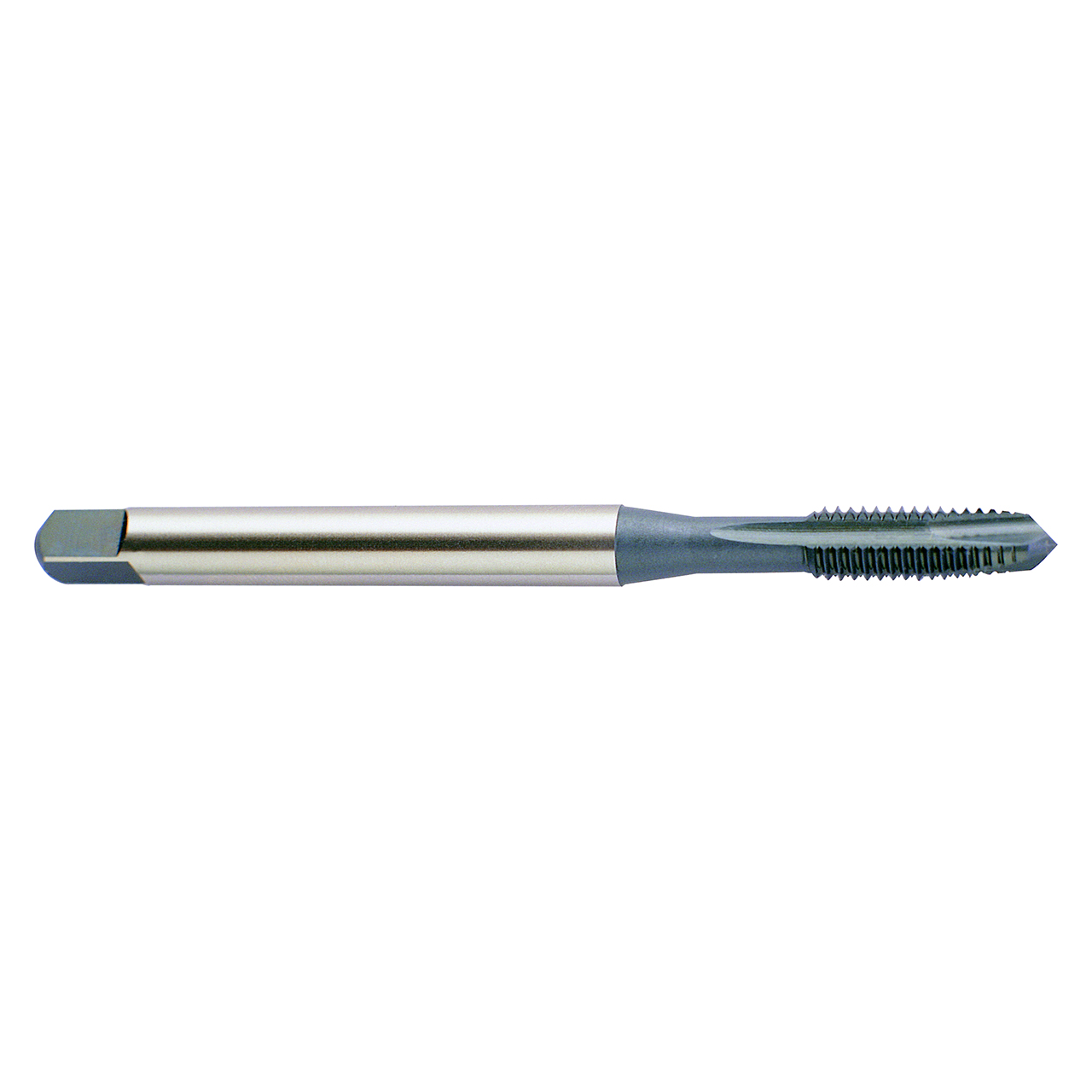

| Product Type | Spiral Point Plug Tap |
