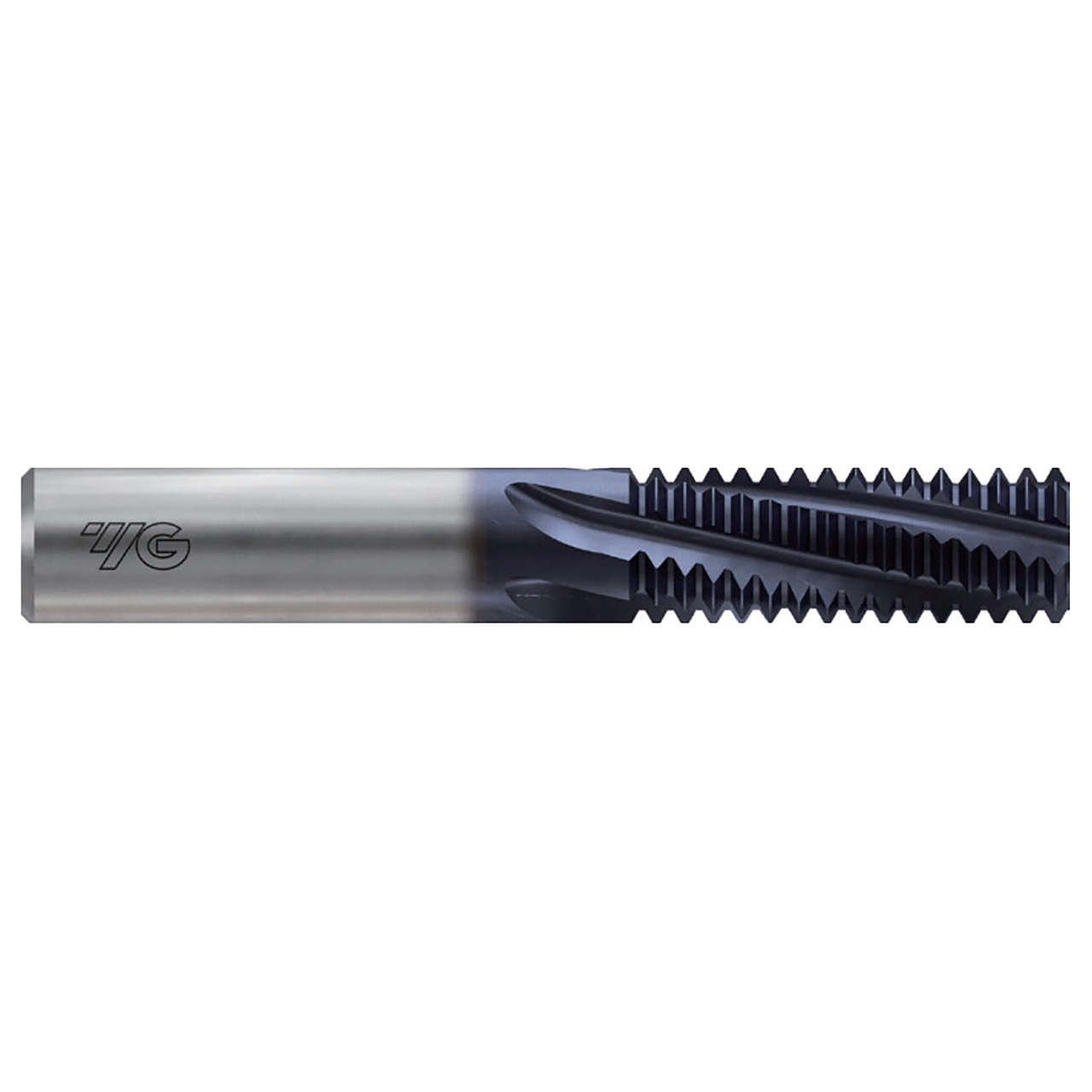

YG1 L121K020 | 1/8" x 27 Thread x 0.2450" Diameter x 0.2500" Shank x 2.5000" OAL 3 Flute TiAIN Coated Carbide Helical Flute Thread Mill

$202.74 $136.85
(You save $65.89)
Brand:
YG1
Thread Size (Inch):
1/8"
Thread Size (Decimal Inch):
0.1250"
Thread Size (mm):
3.18mm
Threads Per Inch:
27 TPI
Number of Flutes:
3
Finish/Coating:
TiAIN
Material:
Carbide
interval quantity:
1
SKU:
17983410
UPC:
Weight:
0.07 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
YG1 L121K020 | 1/8" x 27 Thread x 0.2450" Diameter x 0.2500" Shank x 2.5000" OAL 3 Flute TiAIN Coated Carbide Helical Flute Thread Mill

Product Specifications
Manufacturer Part NumberL121K020
Threads Per Inch27 TPI
Diameter (Decimal Inch)0.2450"
Diameter (mm)6.22mm
Shank Diameter (Decimal Inch)0.2500"
Shank Diameter (mm)6.35mm
Thread Length (Decimal Inch)0.5560"
Thread Length (mm)14.12mm
Overall Length (Decimal Inch)2.5000"
Overall Length (mm)63.50mm
Number of Flutes3
SeriesL121K
Thread SeriesNPS
Shank StylePlain
Helix Angle15 Degree
CoatingTiAIN
MaterialCarbide
Type NPS Thread-ANSI B 1.20.1
ApplicationP,K,N
Cutting DirectionRight

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
YG1
Thread Size (Inch):
1/8"
Thread Size (Decimal Inch):
0.1250"
Thread Size (mm):
3.18mm
Threads Per Inch:
27 TPI
Number of Flutes:
3
Finish/Coating:
TiAIN
Material:
Carbide
interval quantity:
1
