Product Specifications

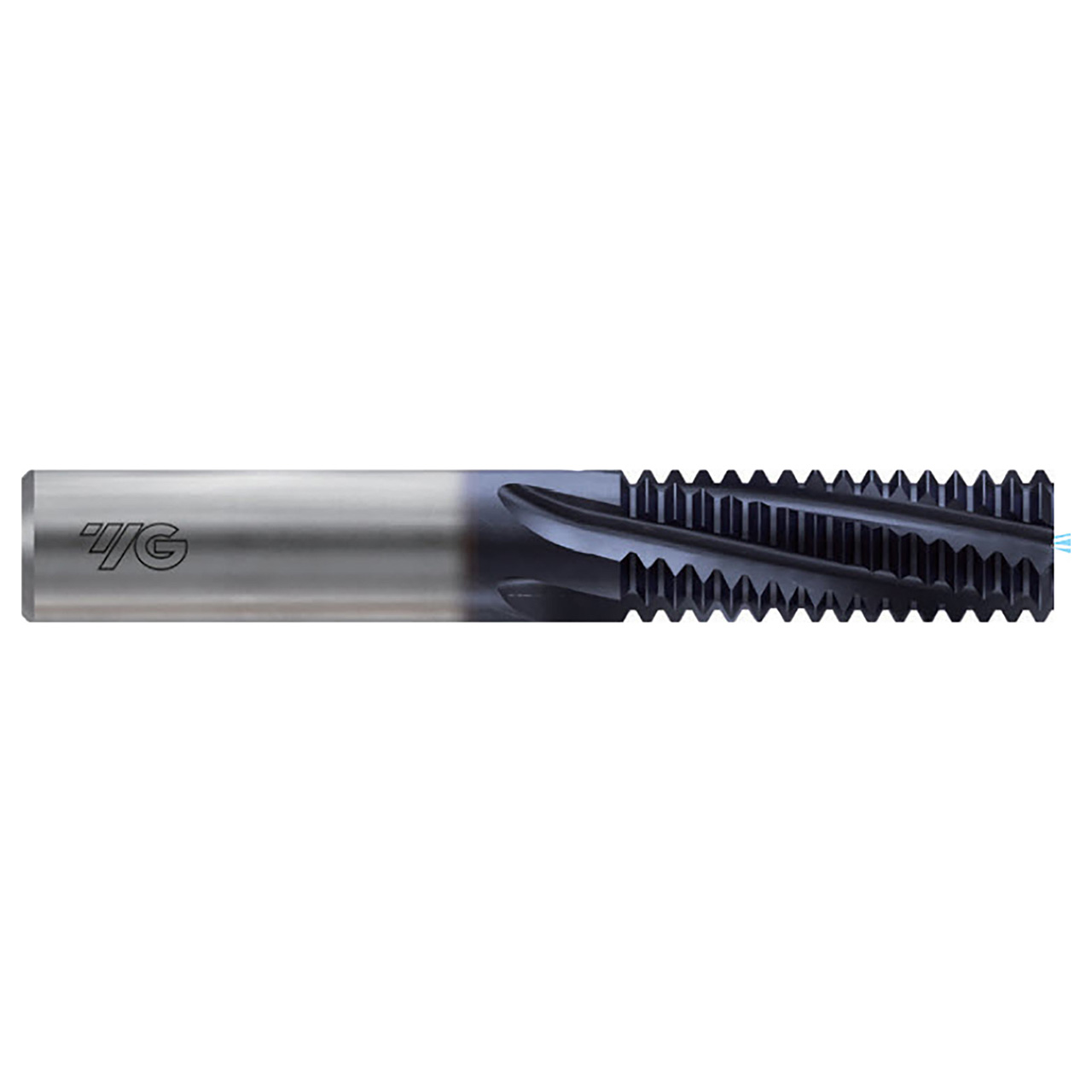

| Manufacturer Part Number | L421E420 |
| Thread Diameter (Inch) | 1/4" |
| Threads Per Inch | 28 TPI |
| Diameter (Inch) | 9/50" |
| Diameter (Decimal Inch) | 0.1800" |
| Diameter (mm) | 4.57mm |
| Shank Diameter (Inch) | 3/16" |
| Shank Diameter (Decimal Inch) | 0.1870" |
| Shank Diameter (mm) | 4.75mm |
| Thread Length (Inch) | 1/2" |
| Thread Length (Decimal Inch) | 0.5000" |
| Thread Length (mm) | 12.70mm |
| Overall Length (Inch) | 2-1/2" |
| Overall Length (Decimal Inch) | 2.5000" |
| Overall Length (mm) | 63.50mm |
| Number of Flutes | 3 |
| Series | L421E |
| Thread Series | UN |
| Shank Style | Plain |
| Helix Angle | 15 Degree |
| Coating | TiAIN |
| Material | Carbide |
| Type | Unified Internal Threads-ANSI B1.1 |
| Application | P,K,N |
| Cutting Direction | Right |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Thread Size (Inch):
1/4"
Thread Size (Decimal Inch):
0.2500"
Thread Size (mm):
6.35mm
Threads Per Inch:
28 TPI
Cutter Diameter (Inch):
9/50"
Cutter Diameter (Decimal Inch):
0.1800"
Cutter Diameter (mm):
4.57mm
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1870"
Shank Diameter (mm):
7.92mm
Number of Flutes:
3
Finish/Coating:
TiAIN
Material:
Carbide
