Product Specifications

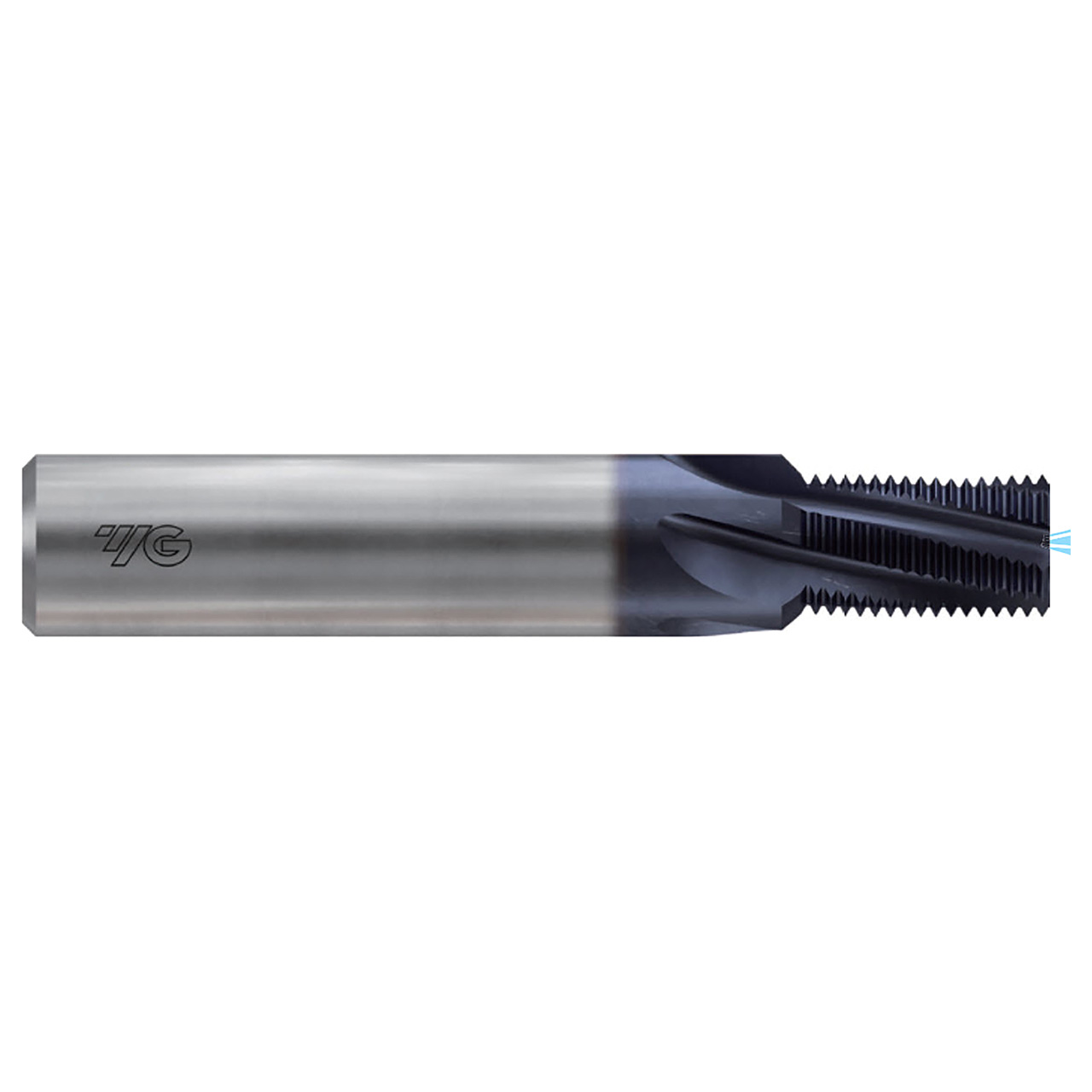

| Manufacturer Part Number | L427E720 |
| Thread Diameter (Inch) | 3/4" |
| Threads Per Inch | 16 TPI |
| Diameter (Inch) | 19/29" |
| Diameter (Decimal Inch) | 0.6550" |
| Diameter (mm) | 16.64mm |
| Shank Diameter (Inch) | 3/4" |
| Shank Diameter (Decimal Inch) | 0.7500" |
| Shank Diameter (mm) | 19.05mm |
| Thread Length (Inch) | 1-1/2" |
| Thread Length (Decimal Inch) | 1.5000" |
| Thread Length (mm) | 38.10mm |
| Overall Length (Inch) | 4" |
| Overall Length (Decimal Inch) | 4.0000" |
| Overall Length (mm) | 101.60mm |
| Angle | 90 Degree |
| Number of Flutes | 5 |
| Series | L427E |
| Thread Series | UN |
| Shank Style | Plain |
| Helix Angle | 15 Degree |
| Coating | TiAIN |
| Material | Carbide |
| Type | Unified Internal Thread-DIN13 |
| Application | P,K,N |
| Cutting Direction | Right |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Thread Size (Inch):
3/4"
Thread Size (Decimal Inch):
0.7500"
Thread Size (mm):
19.05mm
Threads Per Inch:
16 TPI
Cutter Diameter (Inch):
19/29"
Cutter Diameter (Decimal Inch):
0.6550"
Cutter Diameter (mm):
16.64mm
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Number of Flutes:
5
Finish/Coating:
TiAIN
Material:
Carbide
